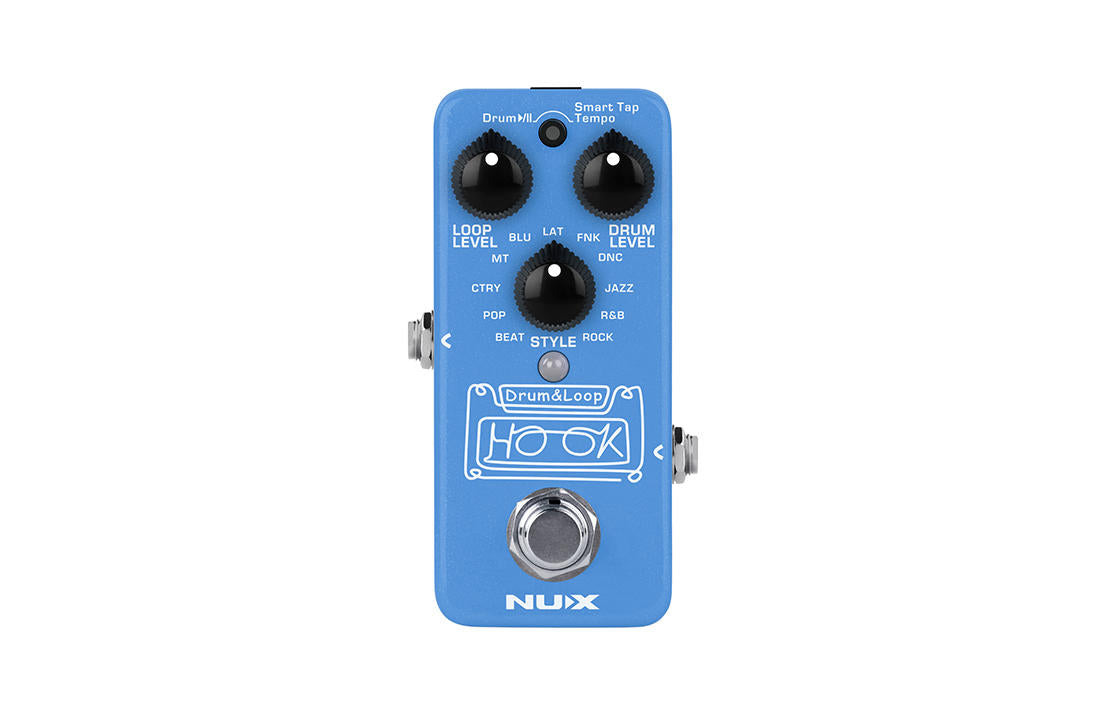

Nux HOOK Drum & Loop (NDL-3) Pedal

The HOOK Drum & Loop (NDL-3) is a mini looper pedal with auto tempo detection. Simply record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. The HOOK is intelligent and simple to operate.

When recording your phrase loop, you can choose Normal Recording or Auto Recording. Normal Recording (NR) is like regular looper pedal, while you press the footswitch, it starts to record immediately.

Features

• 24-bit phrase loop with auto tempo detection rhythm in a mini enclosure.
• 11 rhythm styles with Smart Tap Tempo.
• Up to 6 minutes recording, unlimited overdubs.
• Drum and Loop volumes can be adjusted separately.
• Independent loop & drum playing.
• True-bypass and analog dry-through.
• 1/8” phones out for silent practice.
• Low power consumption. (less than 100mA)
• USB-C port for firmware update, file import/export.

Specifications

• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Phones Output Impedance: 10Ω
• Dynamic Range: 103 dB
• DSP Processing: 44.1KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power：9V DC(Negative tip, Optional ACD-006 adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
