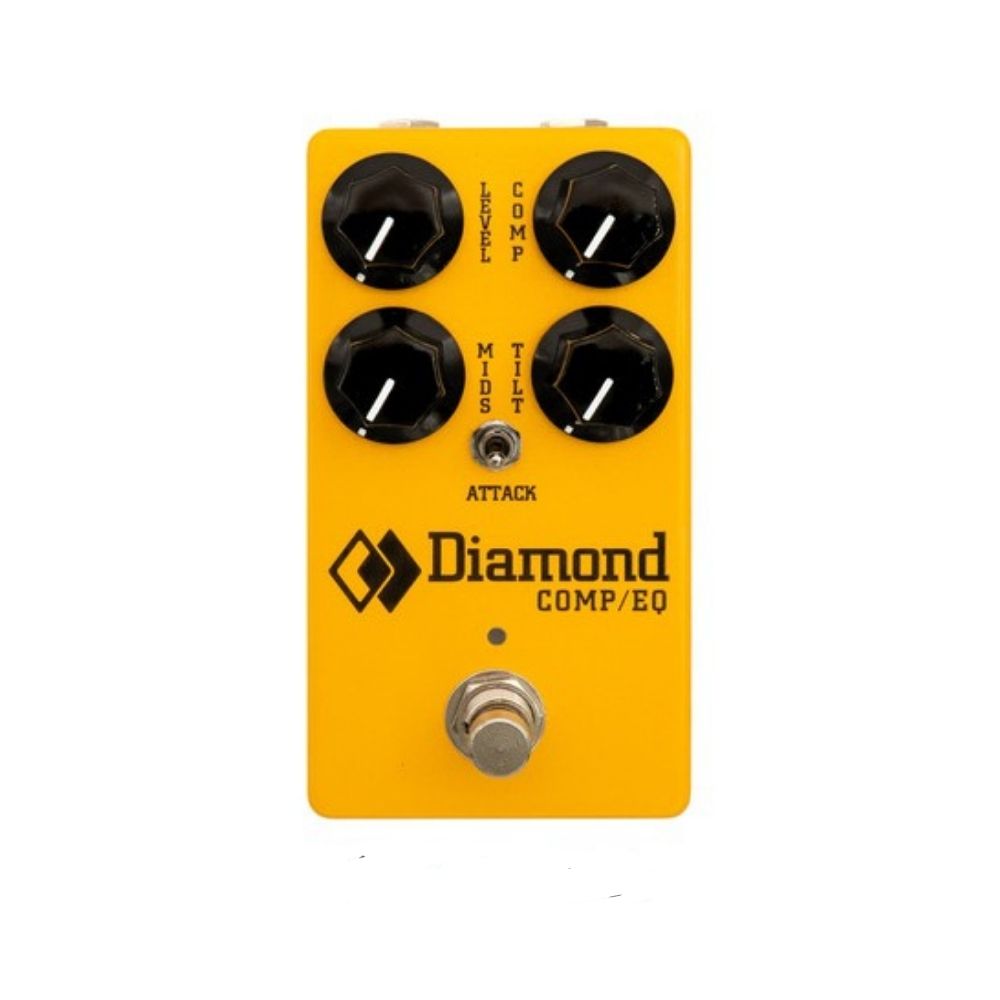

Diamond Pedals Comp/EQ - Optical Compressor and Tilt EQ Pedal
- Regular price
-
Rs. 25,950.00 - Regular price
-
- Sale price
-
Rs. 25,950.00
Estimated Dispatch Time: 2-4 weeks
Couldn't load pickup availability
Description
There are few compressors that are more sought after than our yellow box Diamond. This next-gen compressor maintains the classic circuit architecture while increasing range and functionality. The new EQ section allows you to sculpt your tone in the same box that squashes it (that’s a good thing). Furthermore, the attack switch allows you to go from the signature ultra-snappy Diamond comp style all the way to softer transparent compression.
SIGNATURE COMPRESSION
Rather than mess with perfection, the Diamond Comp/EQ augments the original yellow box design with a new Mids boost/cut control, Attack switch, custom spec'd, US made opto-isolators and modern, quiet switching.
PEDALBOARD MASTERING
Combining silky smooth, natural optical compression with our signature hi-fi inspired, centre-detent active tilt EQ and Mid boost/cut control, the Comp/EQ is a mastering solution for your effects chain....one you might never turn off.
THE NEW STANDARD
For the modern pedal-user's needs. Space saving design, without any loss of quality. Complete with all analog, Burr-Brown audio path, top-mounted jacks, 9-18VDC operation and relay based true bypass switching.
Input Impedance: > 1MΩ
Output Impedance: < 10KΩ
Switching: Relay True Bypass
Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack.
Current Draw @ 9 VDC : 22mA
Tilt EQ Fulcrum Frequency: 800 Hz +|- 6 dB
Mid EQ Center Frequency: 800 Hz +|- 10 dB
Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")
Weight: 280 g
Made In Canada
