Diamond

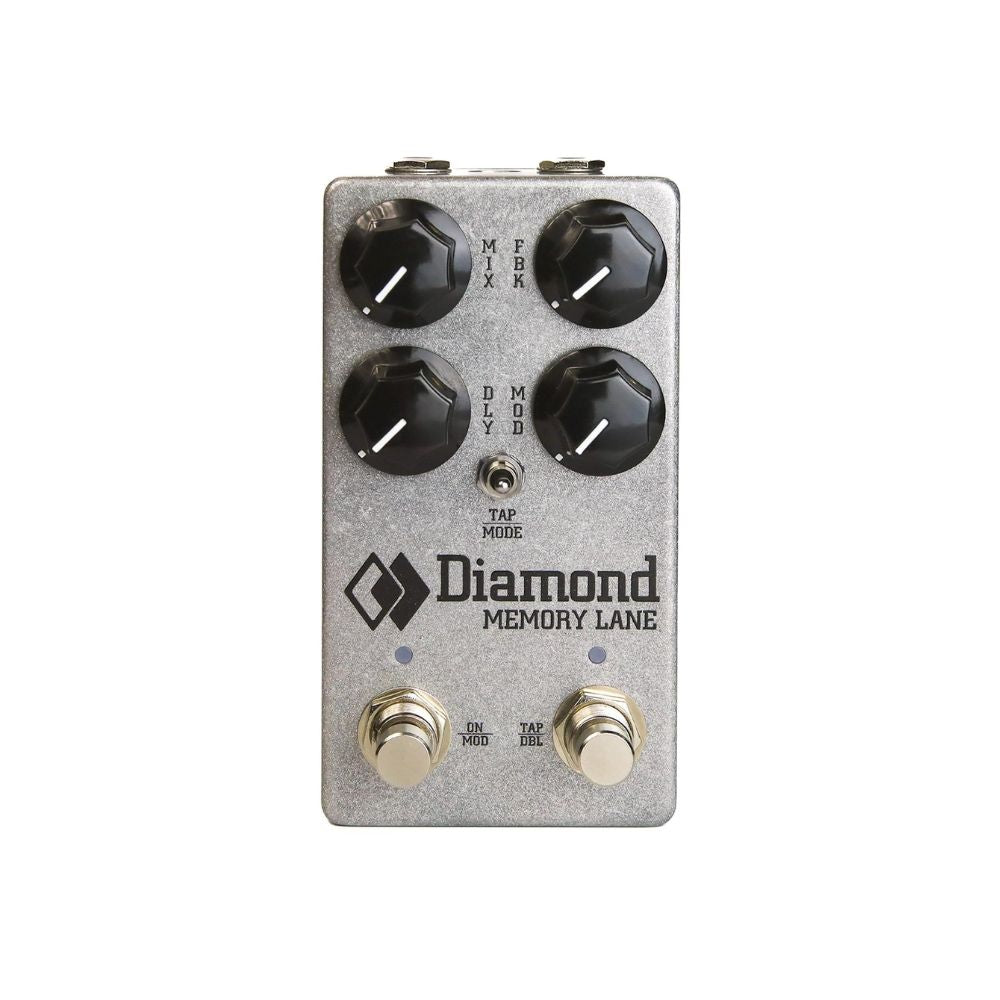

Diamond Pedals Memory Lane - Digital Bucket Brigade Style Delay Pedal

Regular price
Rs. 26,950.00
Regular price
Sale price
Rs. 26,950.00
Tax included. Shipping calculated at checkout.

Estimated Dispatch Time: 24-48 hrs

Email me when available
Add To Wishlist
Description

It. Is. Back.

Blending analog companding, anti-aliasing|reconstruction filters with a bucket brigade style delay line, we have immaculately captured the ethereal essence of the original big-box Memory Lane using Diamond’s innovative digital Bucket Brigade Delay technology (dBBD). Basically what we’re saying is, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.

This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds.

Original Circuit

The Memory Lane Jr. circuit reincarnated. Our original compander equipped dBBD delay line delivering up to 1200ms of lush, modulated repeats.

Three Distinct Delay Modes

The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.

The New Standard

For the modern pedal-user's needs. Space saving design, without any loss of quality. Features include top mounted jacks, Burr-Brown equipped buffered bypass with optional trails, tap tempo with subdivisions, AutoDiv, Doubler, momentary or latching modulation and more.Technical Info

nput Impedance: > 1MΩ

Output Impedance: < 10KΩ

Switching: Buffered Bypass

Power Requirement: 9 VDC , negative tip, 2.1 mm barrel jack.

Current Draw @ 9 VDC : 45mA

Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")

Weight: 300 g
