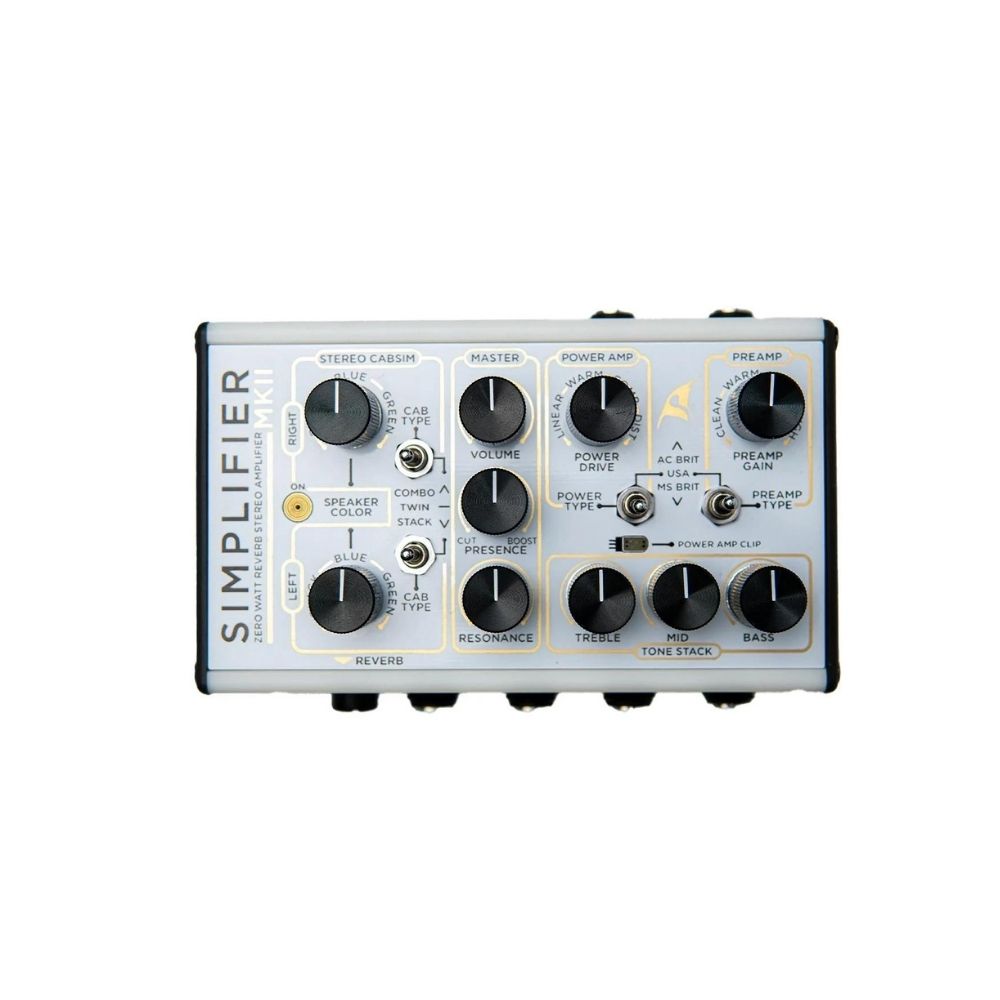

DSM & Humboldt Electronics Simplifier MK-II Zero-Watt Guitar Preamp Stereo Amplifier Pedal

The Simplifier MK-II takes the analog amp simulation to a new stage of realism. Much more options, while keeping the instant touch and dynamics that only an all analog device can manage. All in the same ultra-compact footprint…

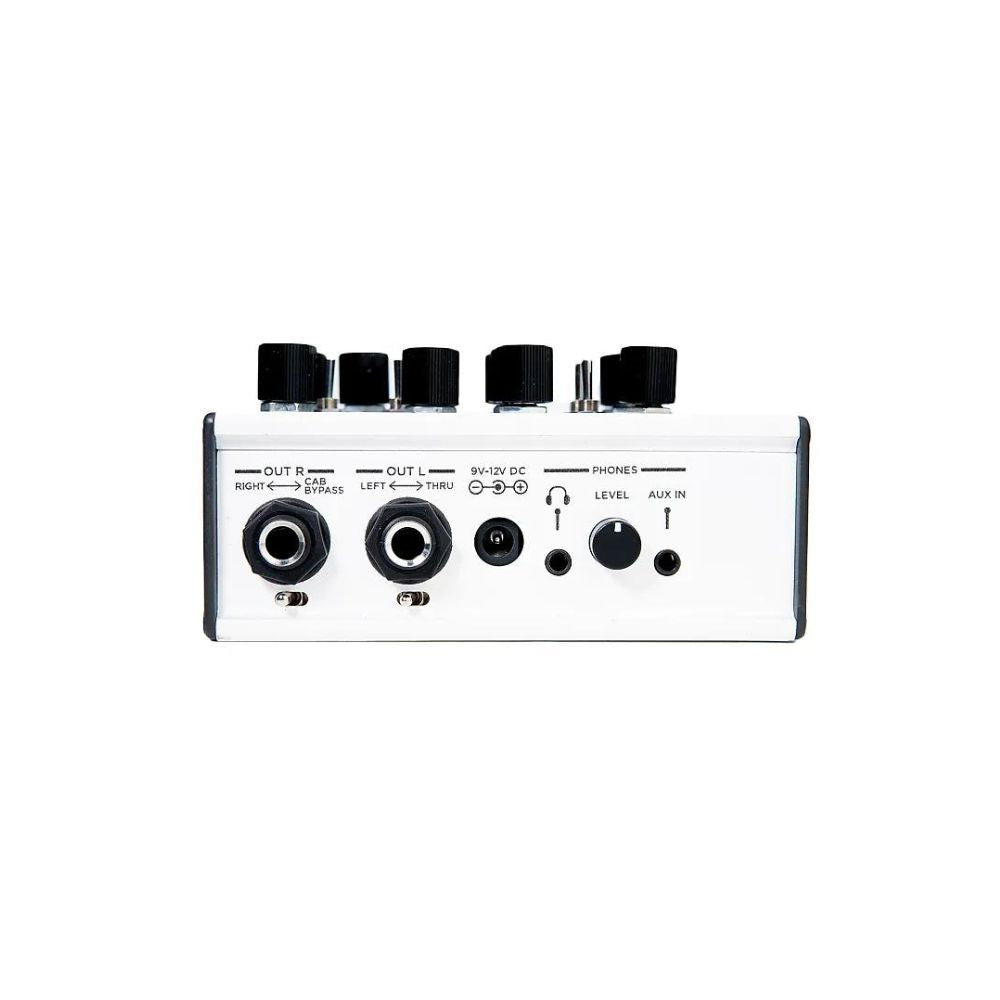

KEEPING THE ULTRA CONNECTIVITY

With a redesigned layout for an easy understanding and connectivity, will help you to keep your Simplifier as your pedalboard brain, better than ever. Also, we included a brand new heavy-duty all aluminum enclosure, with all-metal switches for maximum endurance.

Preamps to the Limit

• Completely redesigned preamps with wider gain options
• AC BRIT Preamp minimizes the MID Control range resulting in a more accurate historic behavior, like a VOX
• AC-30 64’ Top Boost channel.
• American (USA) Preamp is now based on a true classic: The Bassman 59’
• MS Brit performs a new level of gain, just like a hot-rodded Marshall Plexi

The Power Amp

• A new dedicated power amp drive allows you to dial the perfect amount of power amp compression for that sweet- spot that only a tube amp can achieve. This control sets a new level of realism engineered only by DSM Humboldt.
• The POWER AMP is a highly detailed reproduction of a Class A/B power stage, including the phase inverter. Each power type reconfigures the feedback path, PI gain and the effect of the power transformer on the power tubes.
• A Clip indicator shows when the emulated power tubes are clipping, helping you to find the desired sweet spot between power drive and preamp drive, as it would be on an actual tube amplifier.
• In combination with the MASTER VOLUME, you can get any amount of pre and power amp drive at any volume level.

The Master Section

• MASTER VOLUME allows you to set any amount of pre and power amp drive at any volume level, avoiding unwanted FX-LOOP distortion
• Re-designed PRESENCE Control within the power amp feedback. Clockwise it boosts the mid-highs like Marshall and Fender. Counterclockwise it cuts the Highs like a VOX amp.
• Re-designed RESONANCE Control that allows you to set the low-end thump according to your PA system.

Stereo Cabsim

• After a comprehensive research based on hundreds of response curves from the most renowned speakers in the market, we completely redesigned the Cabsim section, replacing the MIC position control for a more useful yet intuitive three profile speakers control:

  • BLACK: Based on the V30 Speaker
  • BLUE: Based on the Blue Alnico Speaker
  • GREEN: Based on the G12 Greenback Speaker
• Three Classic Cab types:

  • COMBO (1x12” Blackface style Cab)
  • TWIN (2x12” AC Style Cab)
  • STACK (4x12” 1960 Style Cab)

Reverb

According to many users, one of the most desired features on the OG Simplifier was a built-in reverb, or at least a room control. This is why we heard this call by loading our new Simplifier with a side-chained digital PLATE reverb.

SPECIFICATIONS

• WEIGHT: 360 grams (0.8 lb)
• Dimensions: 120 x 70 x 45 mm (4.7 x 2.7 x 1.8 inches)
• Power supply requirements:

  • Voltage: 9 to 12V DC regulated
  • Connector: 2.1mm DC jack, Center negative
  • Current consumption: 150mA
  • Recommended supply current: 200mA and up
• Input Impedance: Input: 1Meg Ohm L & R return: 1Meg Ohm
• Output impedance: Send: 1K Ohm
• Unbalanced Outputs: 4.7K Ohms
• Balanced Outputs: 100 Ohms
• Headphone amp specs: Power: 135mW into 32 Ohms.

  • Use with 16, 32, 64 and 96 Ohm Headphones.
  • Loss of power can occur with higher impedance headphones.
