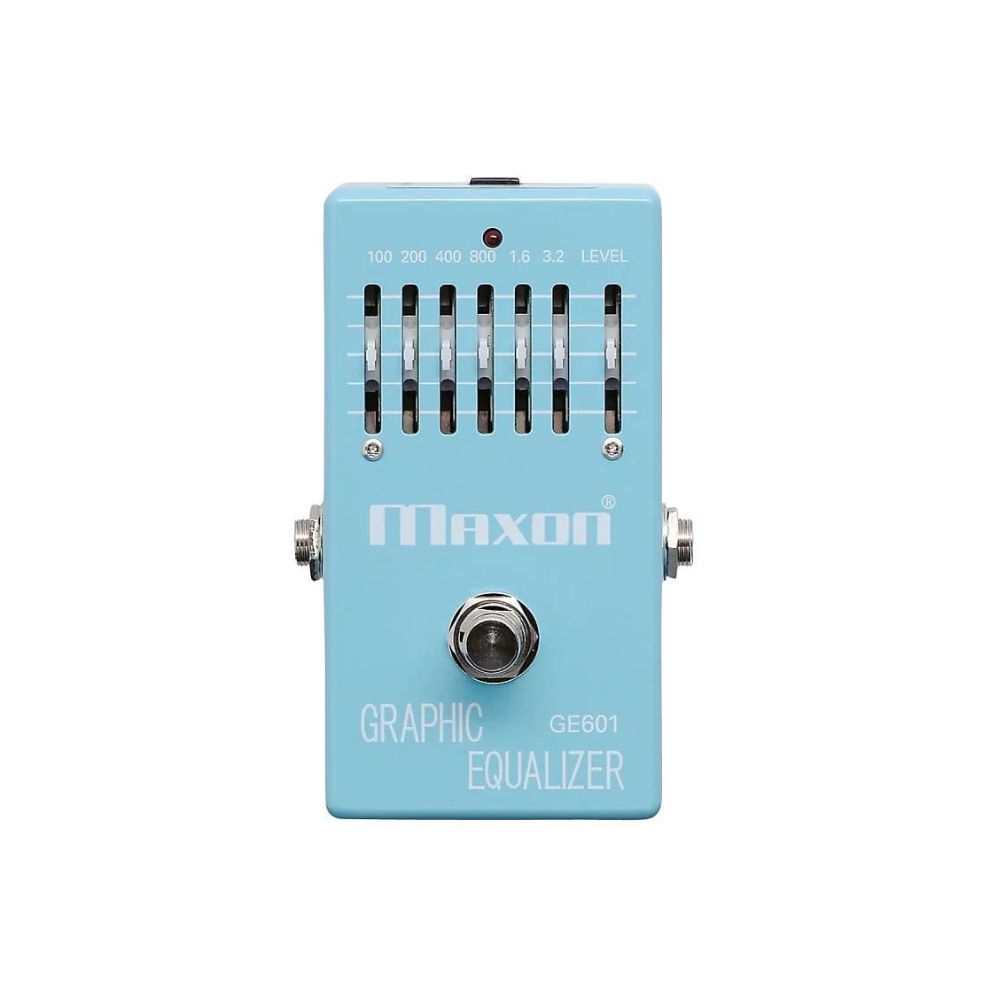

Maxon GE-601 Graphic Equalizer Pedal

• 6-Band Graphic EQ
• 12 dB of boost/cut per band
• 12 dB of output level boost
• Create mid-boosted, wah-like solo tones

EQ’s may not be as sexy as overdrives, but when used properly they can add a wide variety of useful new colors to your existing guitar rig.

The GE601 Graphic Equalizer covers six carefully selected frequency bands over a five octave range with 12 dB of Boost/Cut per band (100, 200, 400 & 800 Hz, 1.6 & 3.2 KHz respectively).  There’s also a Master Level control with 12 dB of overall Boost/Cut.

Adjusting these controls, the GE601 can be used to fine tune your sound in an infinite variety of ways, a few of which are detailed below:

Pickup Simulator (Humbucker to single coil) – To turn a Humbucker into a Single Coil, cut 200, 400, & 800 Hz and Boost 100 Hz & 1.6 KHz.

Pickup Simulator (passive Bass to active Bass) – Cut 200 Hz and Boost 100 Hz & 1.6 KHz to give a passive Bass the clarity and punch of an active instrument.

Pickup Simulator (single coil to piezo) –Cut 200, 400, & 800 Hz and Boost 100 Hz, 1.6 & 3.2 KHz to make a single coil electric simulate the bright, chiming sound of an acoustic guitar with piezo pickup.

Half-cocked Wah – Boost at 800 Hz to emulate the tone of a wah pedal with the treadle set half-way forward.  This setting is also ideal for solo boosts (Adjust Level control to taste).

Clean Booster – Leave all frequency bands flat and boost the Level control to use as a clean booster for solos or to overdrive an amplifier’s input.  For more output, set all frequency bands to maximum boost.

TECH TALK:

After a low-impedance input buffer, the GE601 splits its signal into 6 parallel EQ bands each powered by its own Op Amp (JRC4558).  Through the sweep of the slider you can cut or boost the selected frequency.

Boost is created by feeding the effected signal back into the Op Amp, creating an effect of exponential multiplication of that frequency - the higher the slider, the more of the effected signal is fed back through the EQ Op Amp chain.

The GE601 features buffered, JFET bypass switching with a low impedance output, allowing it to drive long cable lengths or other effect units without loss of signal.

Input Impedance: 500K Ohms

Input Jack: 1/4 inch standard phone jack

Output Impedance: 10K Ohms

Output Jack: 1/4 inch standard phone jack

Output: 1

Controls: Cut/Boost (6), Level (1)

Switch: Normal/Effect

Max Input: 4 dBu

Noise (IHF-A): -110 dBu

Max Amplitude: 12 dB

Frequency Range: 100 Hz 3.2 KHz

Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor

Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)

Current Consumption: 11 mA (9V) / 12 mA (10 V)

AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +)

Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)

Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)

Weight: 240 g
