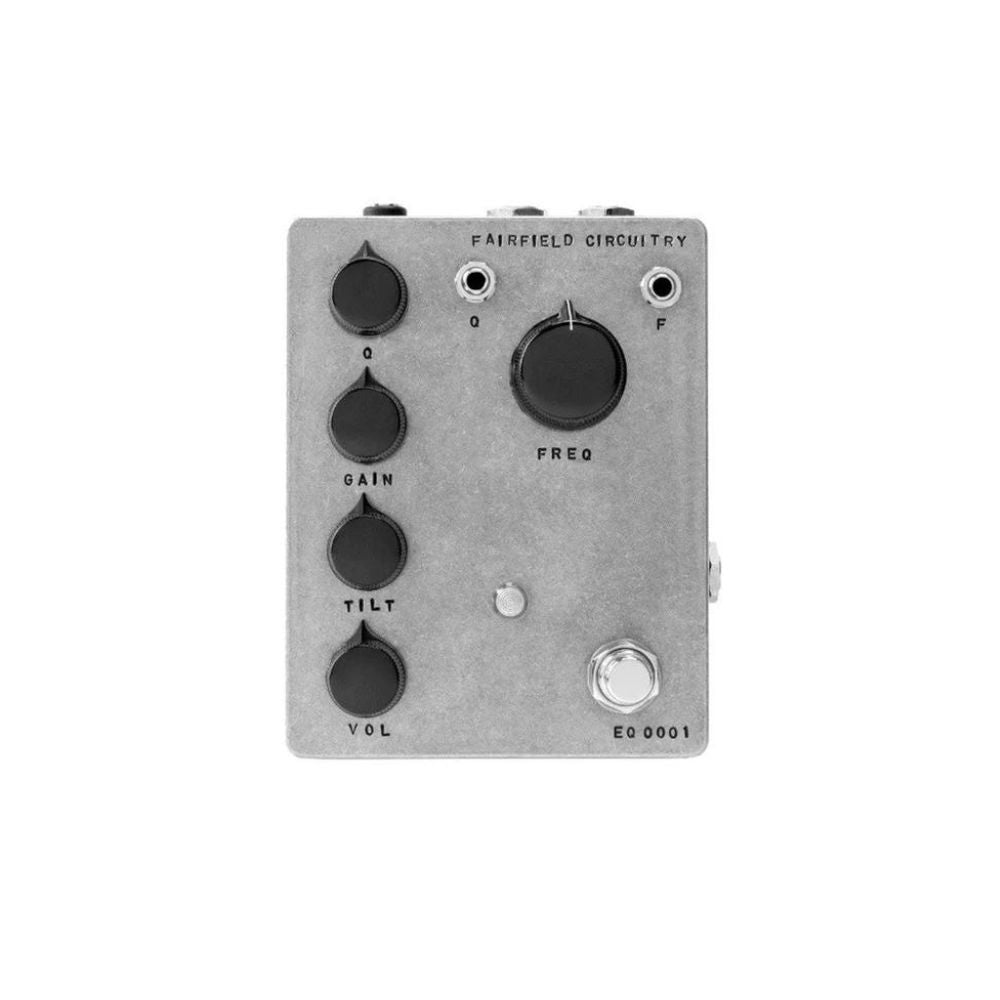

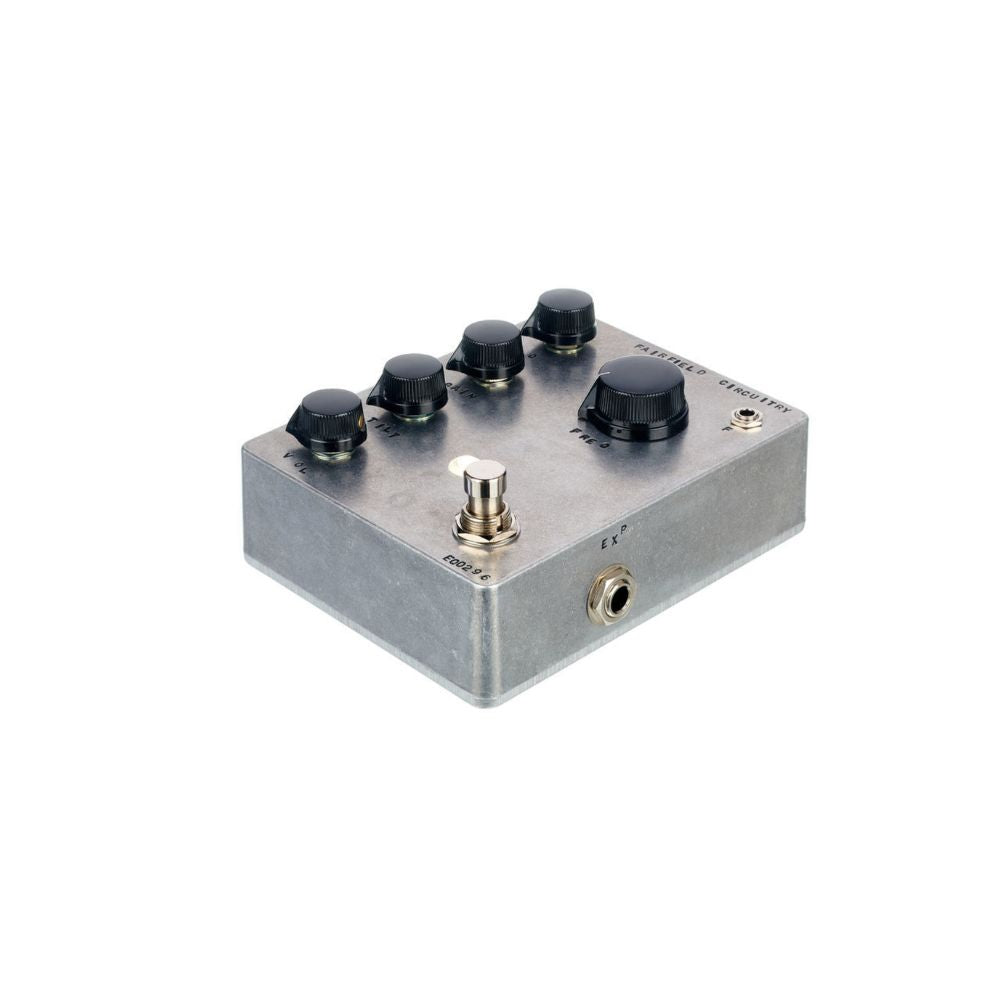

Fairfield Circuitry Long Life Parametric EQ w/ Tilt & CV Guitar Effects Pedal

MANUFACTURER'S DESCRIPTION

A state-variable filter with wide range and application. Versatile. Combining tilt and notch/boost equalization around a 2nd-order (-12dB/octave) state-variable core.

Very much a one-band parametric equalizer with gritty extras:

• Shelving filter, from low-pass to high-pass
• CV inputs for resonance (Q) and frequency (F)
• V/octave scaling synthesizer interface
• Fully variable Q goes well into tasty sweet self-oscillations
• Soft clip zener zesty mordant
• Expression pedal input controls center frequency

USES

• Flexible tone stack allowing for careful tuning of desired response
• Stacking before/after other pedals for dramatic emphasis/deemphasis
  With an expression pedal for wah-type debaucherie
• Standalone channel strip EQ for outboard processing
• Integrated with a modular synthesizer mindset, can act as a VCF and a VCO
• With external CV control such as sequencers and keyboards

SPECIFICATIONS

• Dimensions: 4.7" x 1.8" x 1.9"
• Input Impedance: 1 M ohms
• Output Impedance: <5k ohms
• Power Supply: 5 to 15 VDC
• Current Draw: 95 mA
