Product Name
Quantum HD 2 USB-C Audio Interface
Series
Quantum
Color
Black
Fender Quantum HD 2 USB-C Audio Interface
- Regular price
-
Rs. 60,990.00 - Regular price
-
Rs. 67,600.00 - Sale price
-
Rs. 60,990.00
Tax included.
Shipping calculated at checkout.
Estimated Dispatch Time: 2-4 Business Days
Couldn't load pickup availability
Description
The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.
Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.
Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O.
Features
- Professional software included: Fender Studio Pro perpetual license
- Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
- 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
- Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.

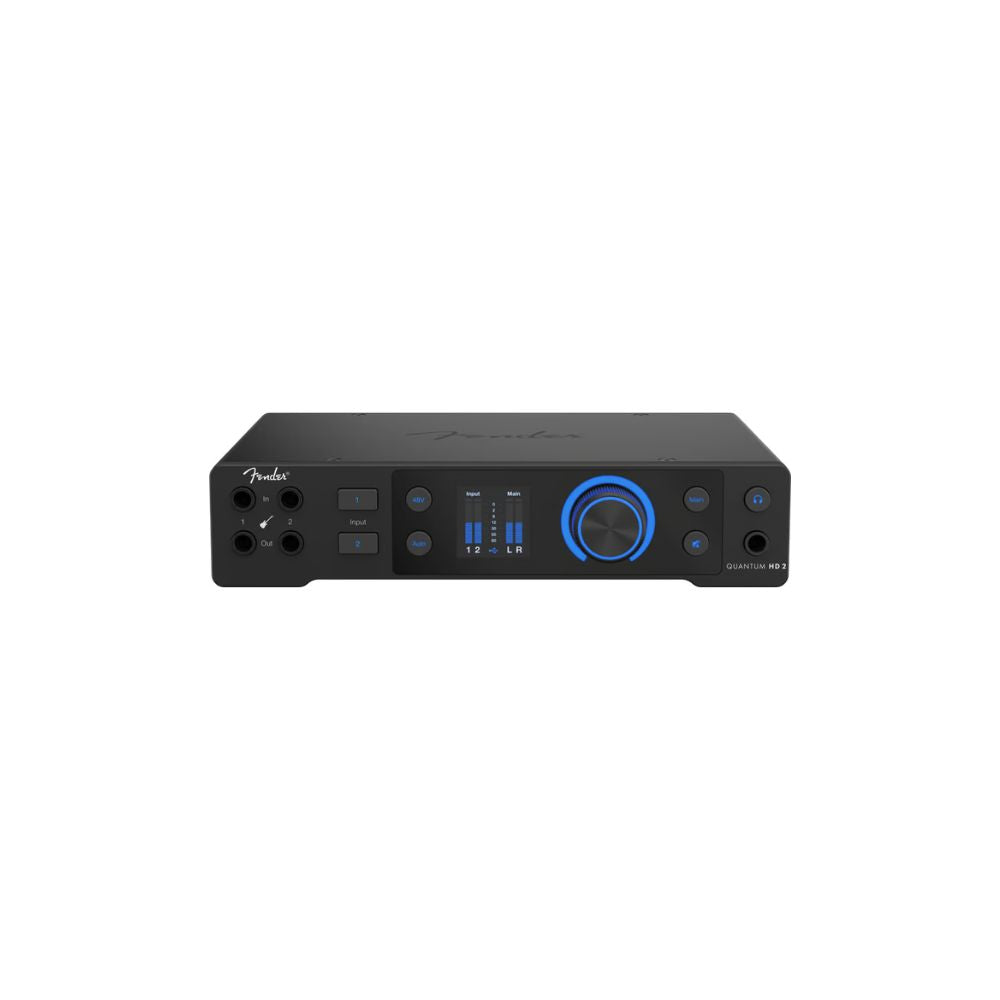

- Front-facing Fender instrument inputs optimized for guitar and bass
- Auto Gain button for instant, hassle-free recording levels
- Re-amp outputs for creative tone exploration with amps and pedals
- DSP monitor mixer and loopback routing for streaming and monitoring
- Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
Specs
General
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
1600 Ohms
Dynamic Range
116 dB (A-Weighted, Minimum Gain)
EIN
-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
THD+N
0.002% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Phantom Power
+48 VDC
Line Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Input Impedance
10K Ohms
Dynamic Range
118 dB (A-Weighted, Minimum Gain)
THD+N
0.001% (1 kHz, Minimum Gain)
Gain Range
± 10 dB
Maximum Input Level
+18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Dynamic Range
111 dB (A-Weighted, Minimum Gain)
THD+N
0.003% (1 kHz, Minimum Gain)
Gain Range
75 dB
Maximum Input Level
+21 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type
1/4" TRS Female
Main Outputs
Connection Type
1/4" TRS Female
Headphone Outputs
Connection Type
One - 1/4" TRS Female Stereo
Frequency Response
20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
Impedance Working Range
33 Ohms
Dynamic Range
118 dB (A-Weighted)
THD+N
0.001% (1 kHz)
Maximum Output Level
11 dBu (50 Ohms)
MIDI I/O
Connection Type
5-Pin Female DIN
Power
Voltage
120V
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C®
Bit Depth
32-bit
Dynamic Range
124 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.9" (48.3 mm)
Depth
7.5" (191 mm)
Width
8.5" (216 mm)
Weight
2.9 lbs. (1.3 kg)
