Headrush MX5 Amp Modeling Guitar Effect Processor

• Custom-designed DSP system with powerful multi-core processing
• High-resolution 4” touch display with guitarist-centric interface
• Versatile library of realistic & responsive amplifier, cabinet, mic and FX models
• Gapless preset switching with reverb/delay tail spillover
• Load virtually unlimited custom impulse response files
• Hands-free edit mode for quick on-the-fly live editing

• Looper with save and load loop features
• Built-in expression pedal with toe-switch and adjustable tension
• Stereo FX loop for external FX or 4-cable connectivity with guitar/bass amps
• 1/8” (3.5mm) aux input, 1/8” (3.5mm) headphones output; MIDI input and output
• Record and re-amp via USB (up to 24-bit/96kHz)

• Amazing 4-inch Touch Display

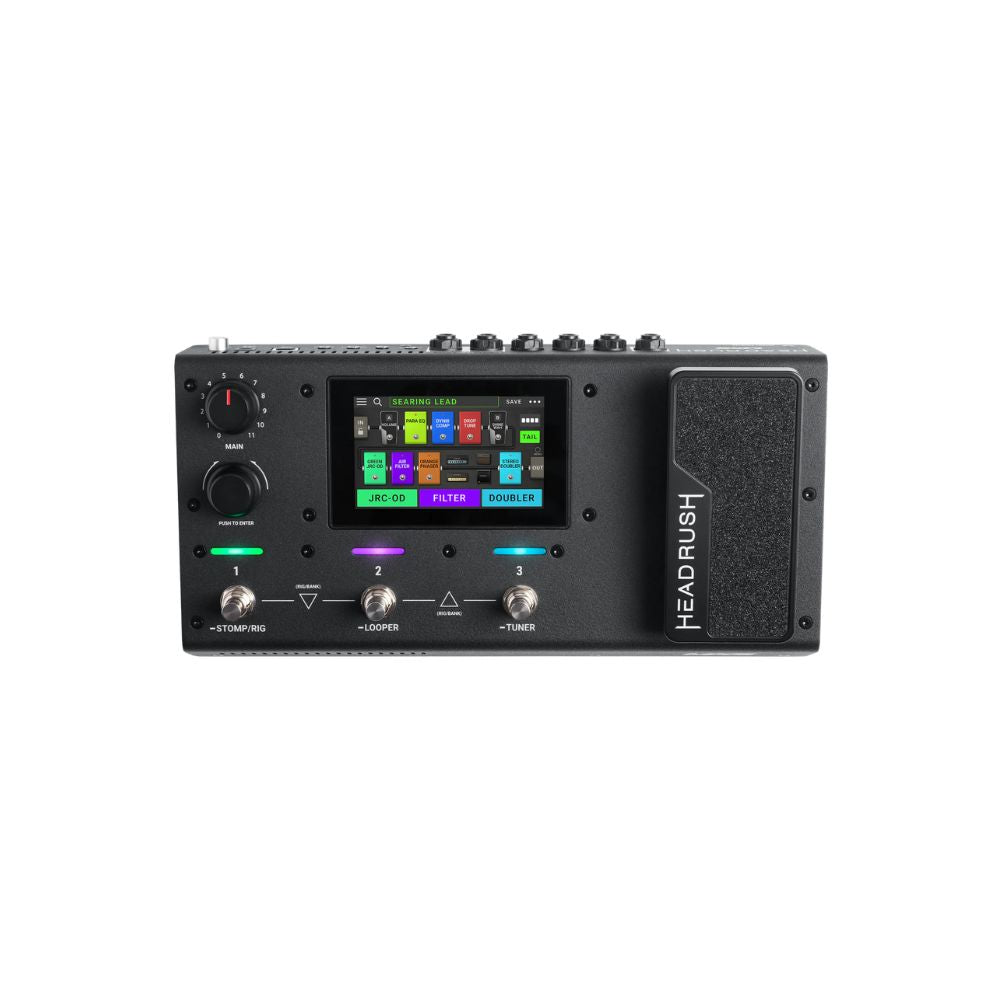

  Center stage on the HeadRush MX5 is an ultra-responsive 4-inch touch display (Exclusive Patent Pending Technology) and a guitarist-centric, intuitive user interface – literally touch, swipe and drag-and-drop to instantly create rigs with lightning speed and precision.

  For the gigging guitarist, MX5’s radiant high-resolution display has you covered, providing critical feedback exactly where, and when, you need it - especially when tweaking tones via the expression pedal in 'Hands-Free Mode’. Everything about the HeadRush MX5 is designed to make it simple, fast and intuitive to jump right in and create your perfect tone in seconds.

• Desk Friendly & Road Ready!

  Perfectly Portable and Flexible

  Equally suited to home recording or live performance situations, the HeadRush MX5 is incredibly portable at just 3.5 lbs. (1.6 kg) and can fit in most backpacks or instrument cases. It’s never been this easy to bring the best classic vintage and modern gear to rehearsals, performances, or recording sessions near or far, without breaking the bank—or your back!

  Ever-Expanding Universe of Incredibly Realistic Models

  The HeadRush MX5 packs a big punch of tone with an immense library of 50 amplifier models, 15 cabinets with 10 microphone emulations, 300 impulse responses, and more than 65 premium FX! All HeadRush models are flawless simulations of the most sought-after vintage and modern gear with unrivalled accuracy and authentic dynamic response. There’s even an expertly curated selection of premium HeadRush FX that can’t be found anywhere else. This library will continue to be expanded with regular firmware updates that add new models and features based on user requests and feedback.

  Unlimited Tonal Expansion with Third Party IR Support

  Out the box, the HeadRush MX5 includes over 300 precision-captured impulse responses, meticulously crafted in IoSR Studios with some of the world’s most revered guitar cabs. Loading your own third-party IRs is a snap; simply hook up the MX5 to your Mac or PC via USB and drag-and-drop your choice IRs. Plus, with virtually unlimited storage for IRs with 1024 and 2048 sample lengths, MX5’s tone sculpting possibilities are virtually limitless!

  Gapless Preset Switching with Reverb/Delay Tail Spillover

  Gapless preset-switching is an exclusive HeadRush feature, ensuring any reverb or delay-tails will continue to ring out, even after changing your preset or rig. The result? No break in your sound, and your rig changes sound fluid and seamless.

  Easy-to-use Stomp, Rig and Hybrid Footswitch Modes

  Controlling your sound has never been easier courtesy of MX5’s 3 built-in footswitches that toggle 3 models or scenes, change rigs, or access your setlists. Quickly switch between the footswitch modes by holding footswitch 1 to select your desired mode. You can also select setlists, enter hands-free mode, and lock the touch display from this menu.

  Convenient Hands-Free Edit Mode

  Need to add a little more gain at the last minute? No problem! Using the hands-free edit mode, you can adjust any parameter mid-song without having to stop playing and/or bend over. Simply select the model that you want to adjust, select the parameter, and then use the built-in expression pedal to fine-tune your settings!

  Toggle Multiple FX with Just 1 Footswitch

  The powerful Scenes feature enables you to turn multiple models on or off in each rig, as well as select different model presets using only one footswitch. When you press the footswitch assigned to that scene, all models included in that scene will turn on or off, or change to a different preset depending on how you assign them. This powerful feature is an incredibly efficient way to create quick access for different tones in the same rig.

  Fully-Assignable Expression Pedal for Maximum Control

  The expression pedal has two powerful modes, Classic Mode and Advanced Mode, alongside a toe switch to switch between two banks — Expression Pedal A or B. In Classic mode, if you assign a wah pedal to Expression Pedal A and a volume pedal to Expression Pedal B, only one of them will be active at any time; when you are controlling the wah pedal, the volume pedal will be bypassed, and vice versa. With the Advanced setting you can assign up to four parameters to each expression pedal (A and B). Moving the pedal will adjust all of its assigned parameters simultaneously. Using the toe switch will select the other expression pedal and leave the current pedal’s parameters active and at their maximum values.

  Best-In-Class Looper with Save & Load Functionality

  The HeadRush MX5 has an advanced built-in looper that you can use to layer parts during performances, or use as a songwriting tool when inspiration strikes. You can load .WAV and .MP3 audio files into the Looper to play along with backing tracks; you can also save your new loops as .WAV files and export them to your Mac/PC via USB Transfer Mode for sharing with the world. Each loop has a maximum length of 5 minutes, and can hold up to a whopping 20 minutes of layered audio at a time.

  Instant Apply Global EQ to Sound Great in Any Room

  The HeadRush MX5’s Global EQ feature is perfect for tailoring your sound to any space; whether it’s a venue or rehearsal space, fine tune your presets to ensure you sound great and complement the acoustic characteristics of any environment. Dial back the Low and Low mids in boomier venues or push up the high end in soundproofed rehearsal spaces - whatever your space demands, MX5 delivers, letting you quickly apply some corrective equalization to your main ¼” outputs and all of your presets without permanently altering them.

  Quickly Organize Your Rigs for Performances

  You can use the convenient Setlists feature to quickly organize and re-order your rigs for an upcoming performance. A setlist is a saved collection of rigs, which you can save and recall at a later time - perfect if you only need some of your rigs for a performance.

Record and Reamp via the Built-in USB Audio Interface

HeadRush MX5’s USB connection opens up a world of feature-rich, intuitive recording and reamping to a computer. When the HeadRush MX5 is connected to your computer, you can select and use the HeadRush MX5 as a 24-bit 96 kHz audio interface! When choosing the Reamp option you can add the tone coloration of an amp to a pre-recorded audio signal—in this case, sending audio from your DAW through the HeadRush MX5 and then recording it back into your DAW. This time saving feature is perfect for changing the sound of a pre-recorded killer guitar take without having to manually play the same part again.

All the connections you need

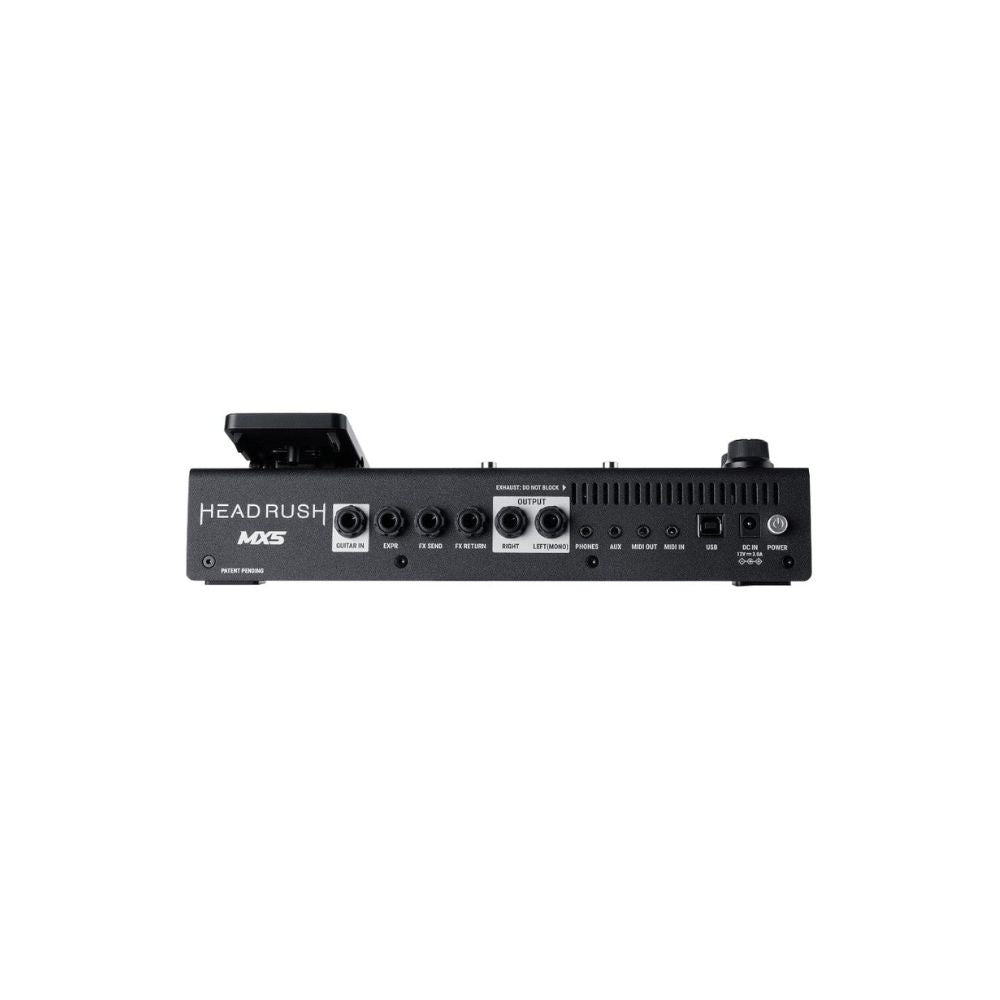

The HeadRush MX5 integrates seamlessly into your current rig with all the connections you need to handle any performance situation. Combining a ¼-inch guitar input, (2) ¼-inch TRS outputs switchable between amp or line level, a 1/8-inch output for headphones, 5-Pin MIDI in/out via 2 1/8"-to-MIDI adapters, plus an onboard ¼-inch stereo FX loop to integrate external pedals at any point in the signal chain, effortless integration into your existing setup is a snap! The HeadRush MX5 even features a ¼-inch TRS input to connect an external expression pedal. The HeadRush MX5 unites your existing equipment while opening up a world of new sonic possibilities.
