Digital Audio Signal Processing
24-bit depth, 44.1kHz sample rate
Dynamic Range
Max. 112dB (digital to analog)
Effects
199
Effects Modules
Total of 9 simultaneous
Patches
198 (99 user patches, 99 factory patches)
Looper Time
Mono 100 seconds, Stereo 50 seconds
Internal Drum Machine
100 Rhythm Patterns
Inputs
-One 1/4" Tip Sleeve (TS) Instrument jack
-One 1/8" Stereo Auxiliary In (Aux In) jack
-One 1/4" Tip Ring Sleeve (TRS) Expression Pedal input jack
Outputs
-One 1/4" Tip Ring Sleeve (TRS) Unbalanced Stereo output jack
-One 1/8" Stereo headphones output jack
Input Impedance
-Instrument Input: 4.7MΩ
-Aux In: 10kΩ
Output Impedance
-Output: 1kΩ
-Headphones: 22Ω
Screen
4" 800 x 480 Color Dynamic Display Touch Screen
USB Port
USB 2.0 Type-C port, supports USB Audio 2.0
Impulse Response/IR processing
Supports 24-bit/44.1kHz Mono WAV files, 1024 points
Power Requirements
9V DC Center Negative
Current Consumption
500mA Max
Dimensions
134mm (W) × 120mm (D) × 49mm (H)
Weight 529g
Available in following Colours

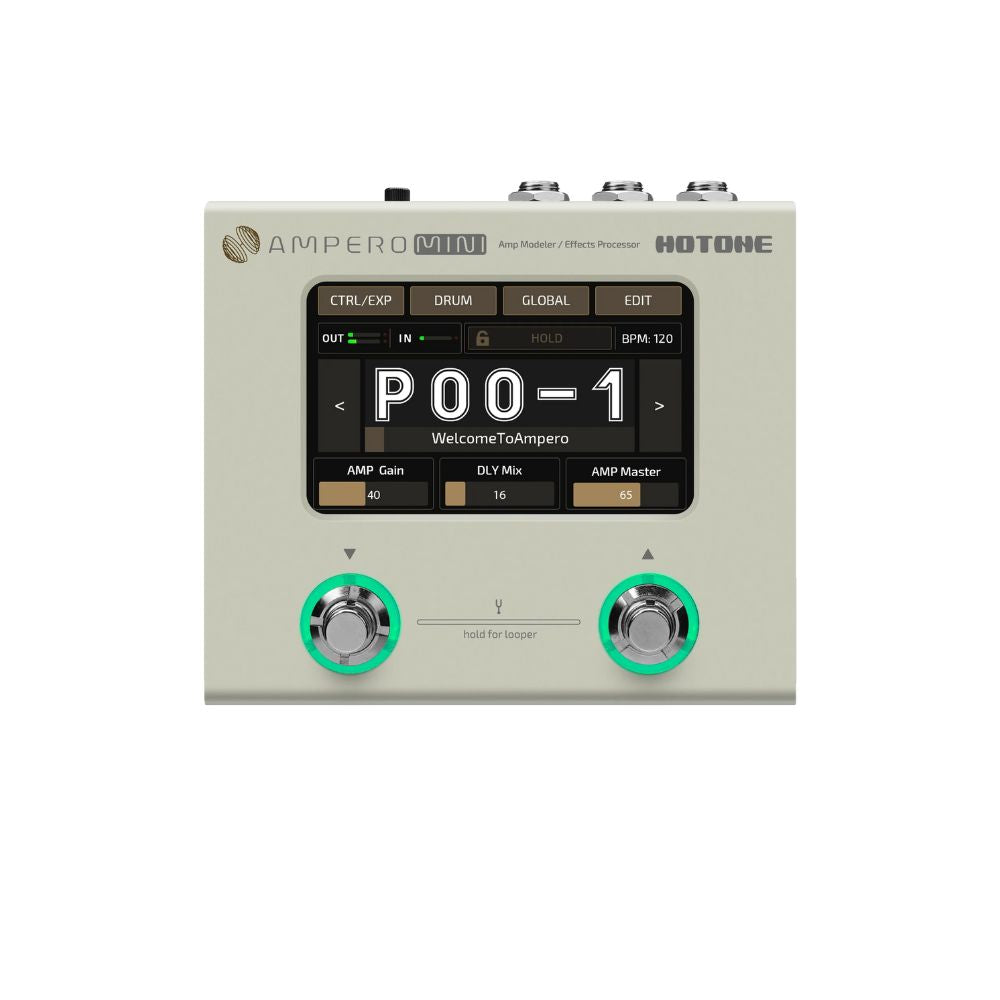

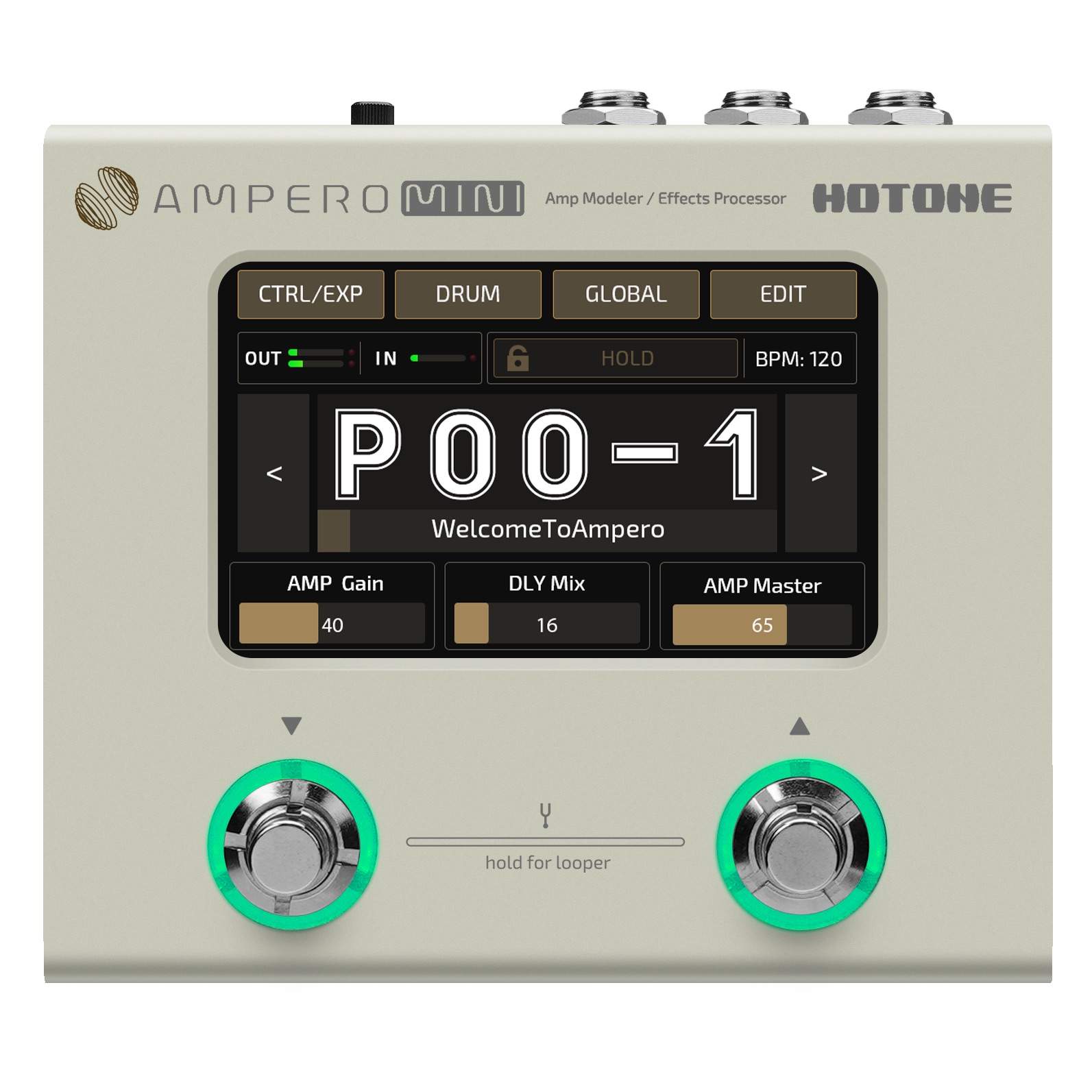

- White (Vanilla)

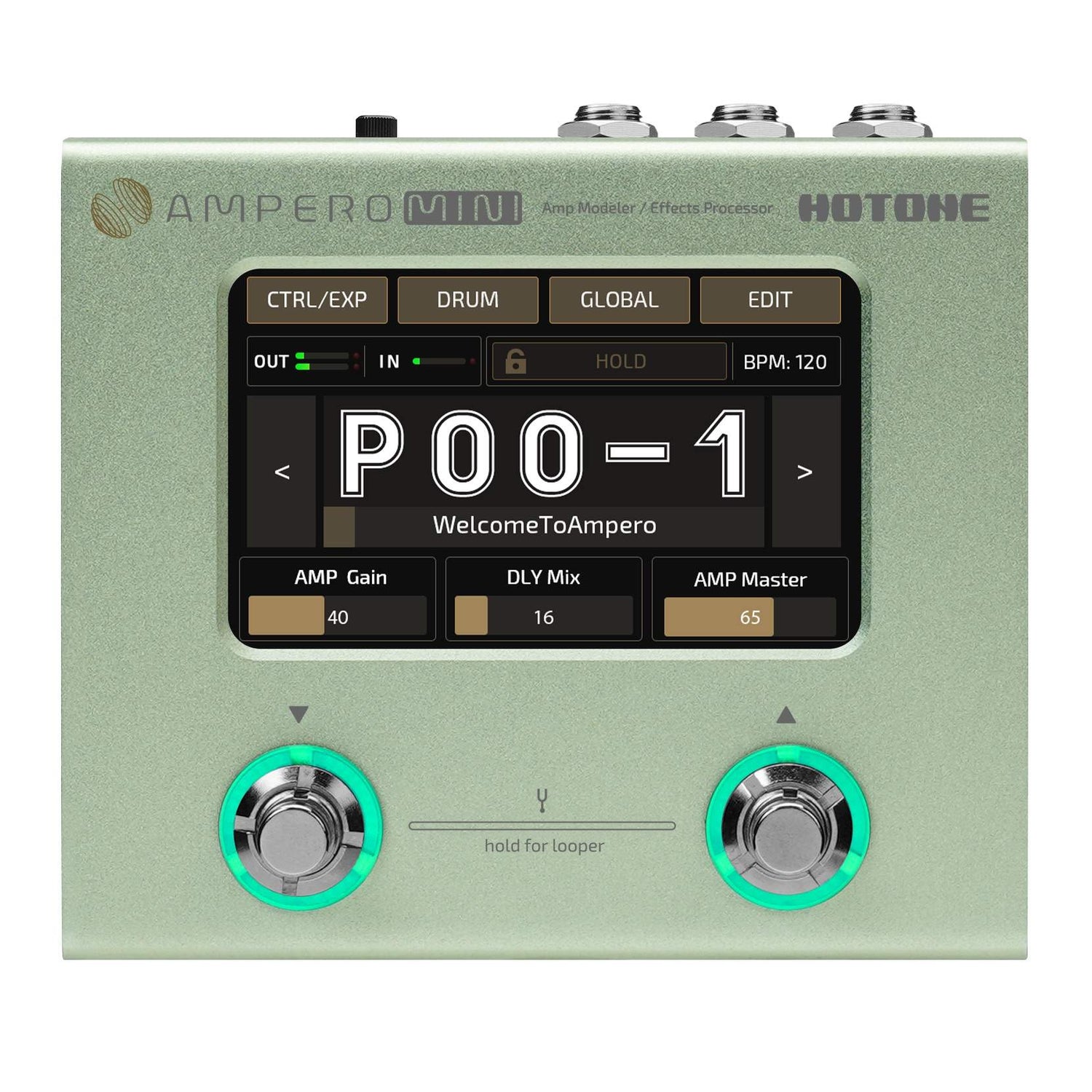

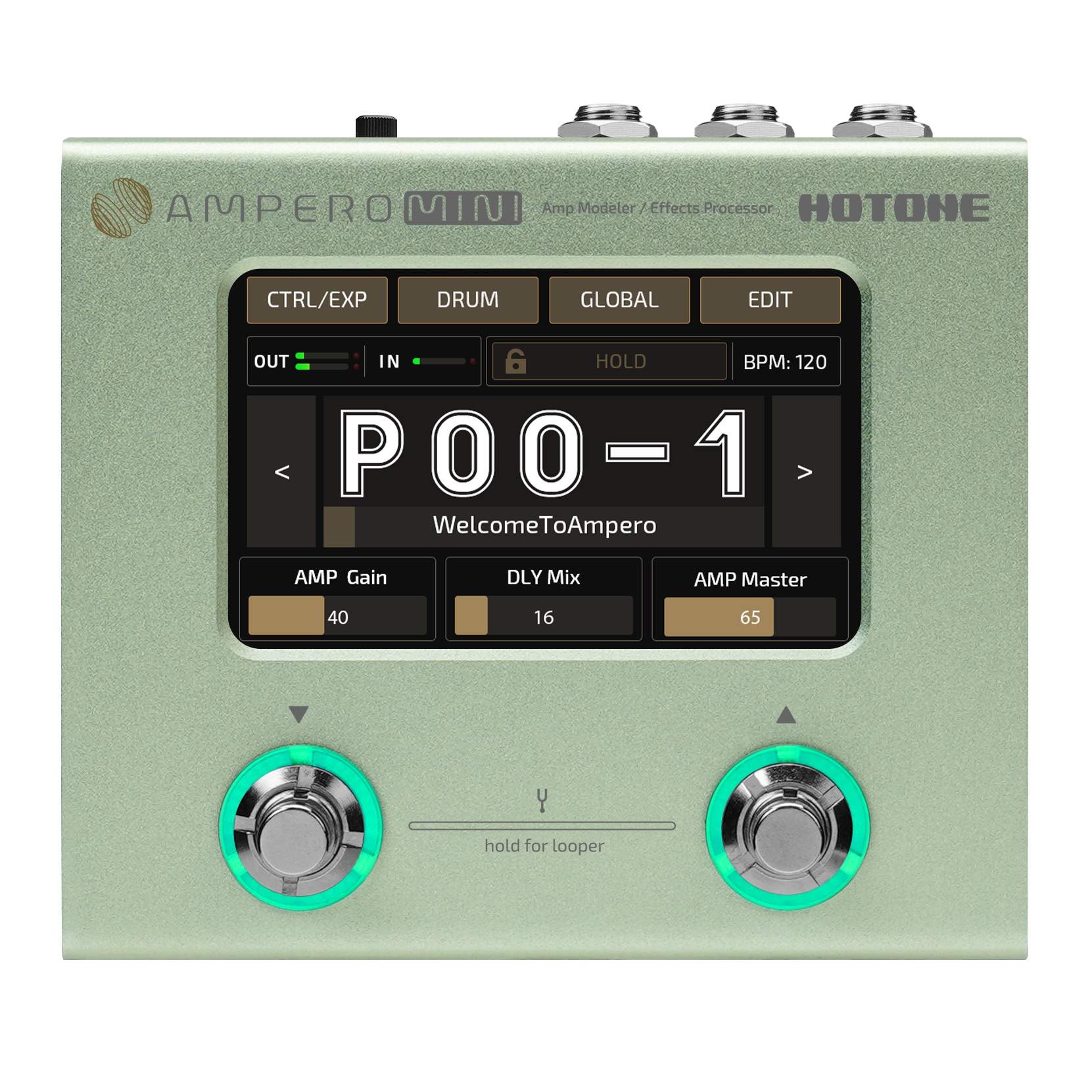

- Light Green (Matcha)

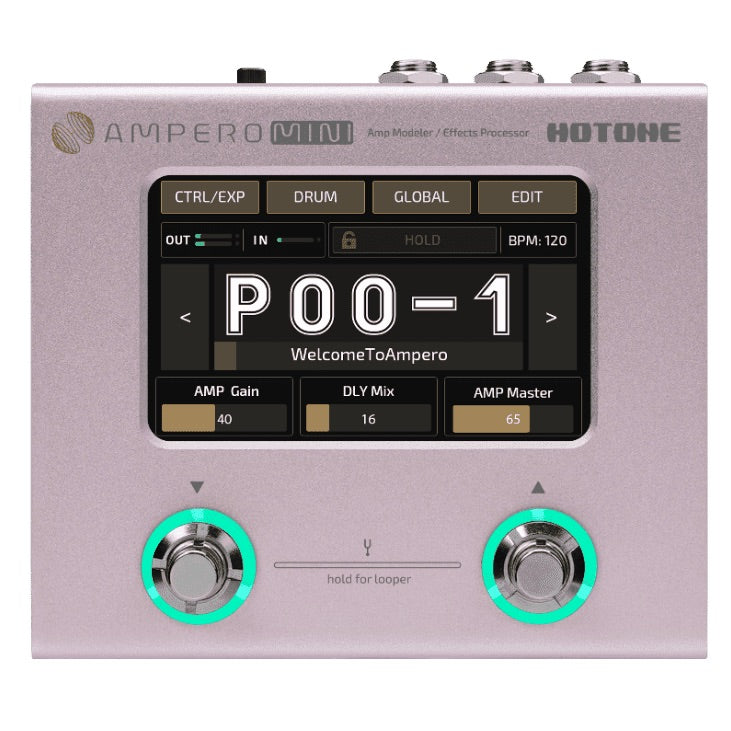

- Purple(Purple Taro)

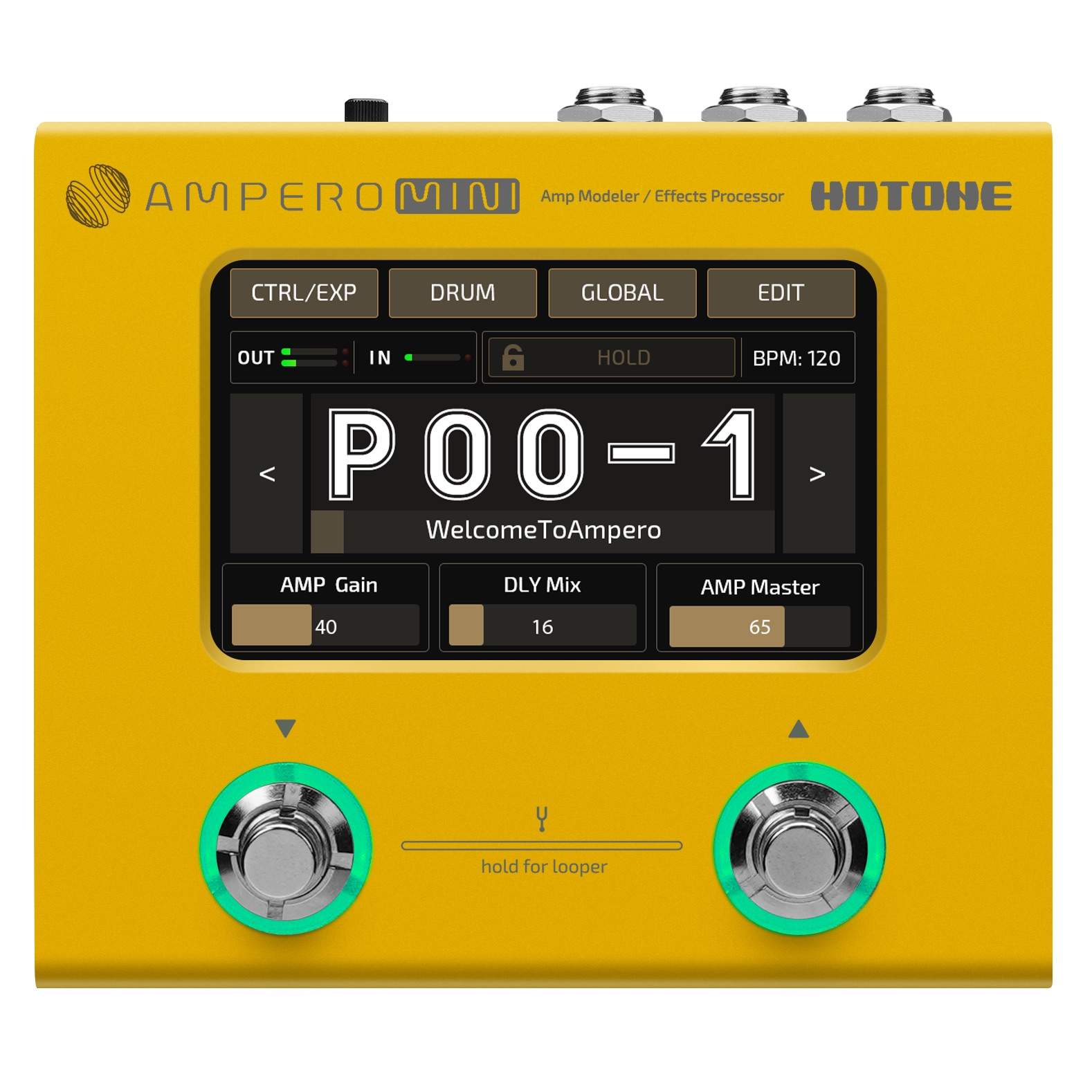

- Gold (Marigold)

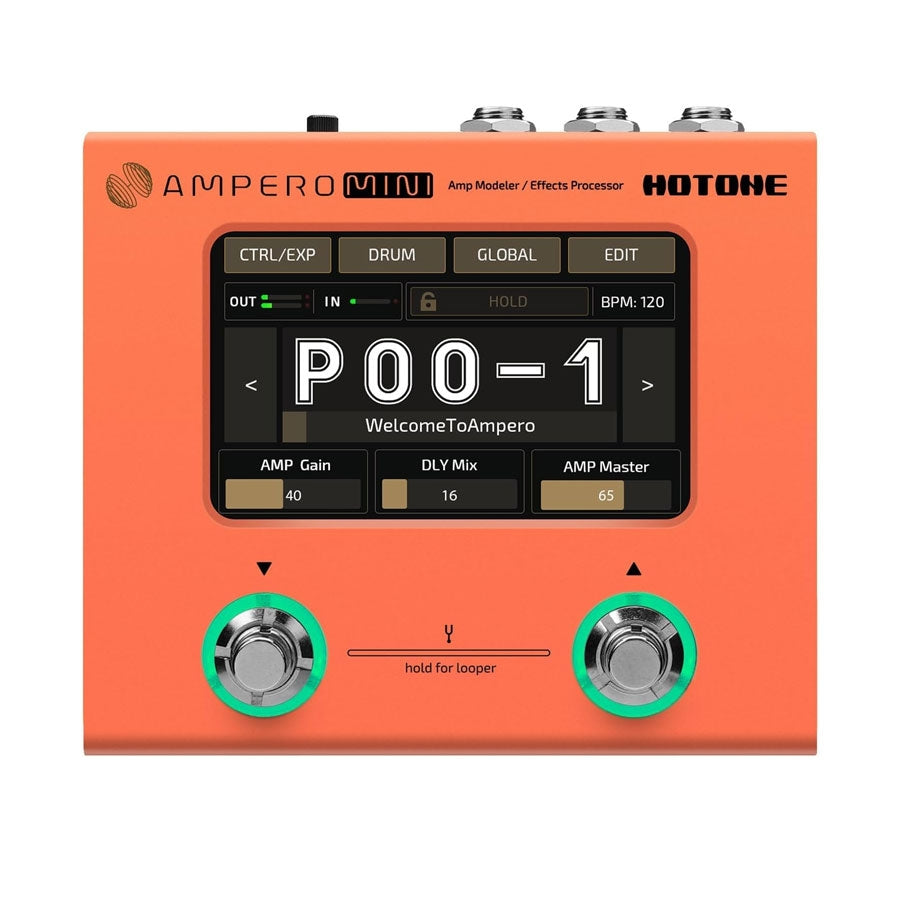

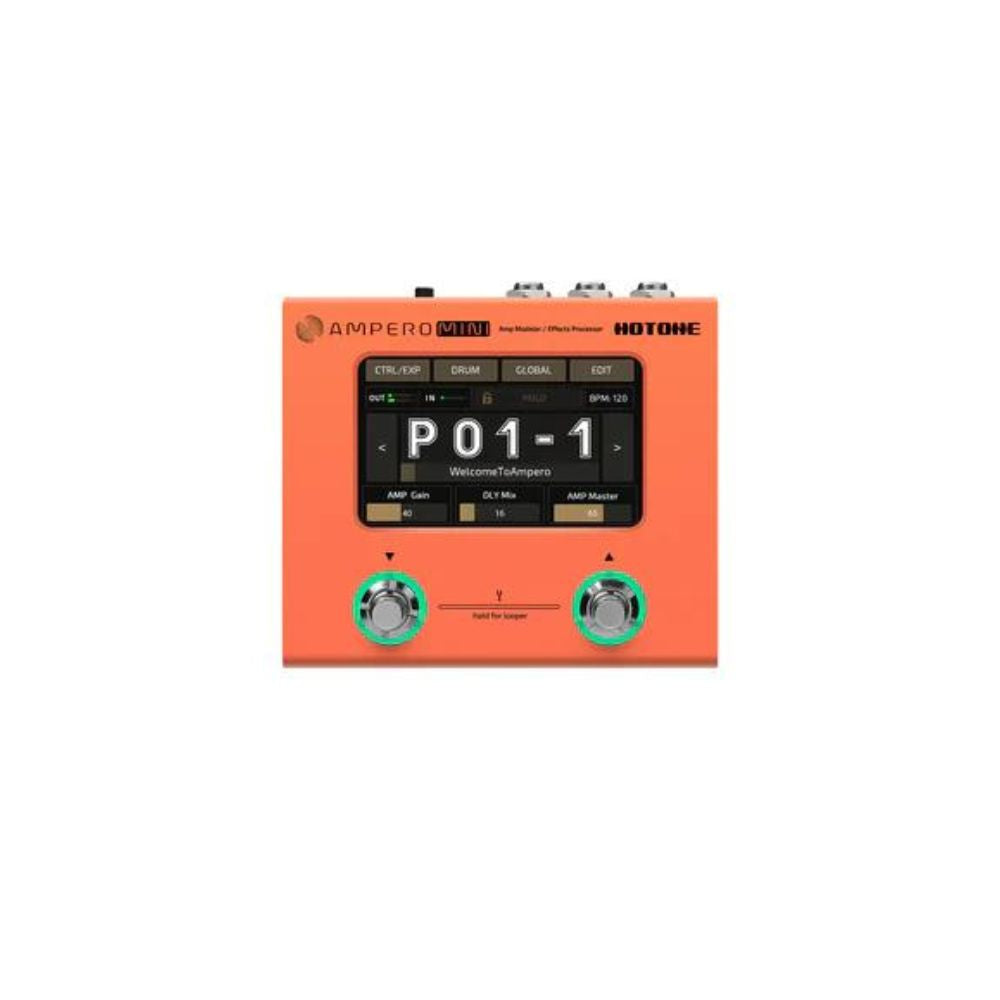

- Orange
