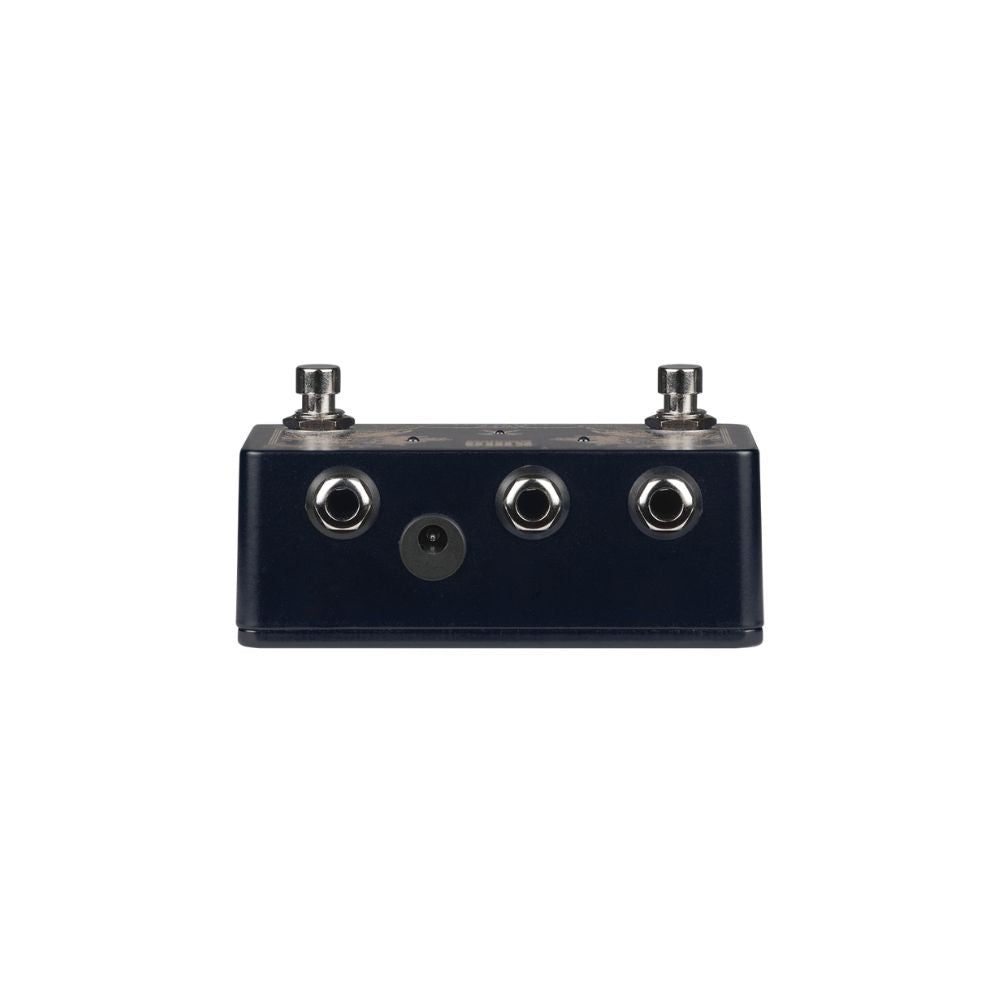

KMA Machines AB/Y Passive Switcher Pedal

Specification

• Switches or combines a mono input signal to two separate outputs
• Switches or combines two separate input signals to one output
• Active noiseless relay-based switching reduces mechanical noise and unwanted clicks
• Durable, compact housing for years of reliable switching
• LED: A, B ,Y
• Foot switch: A / B, A and B
• True Bypass
• Input A: 6.3 mm mono jack
• Input B: 6.3 mm mono jack
• Output Y: 6.3 mm stereo jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Power consumption: 40 mA
• Power supply via 9 V DC power supply unit
• Dimensions (W x D x H): 112 x 65 x 56 mm
• Weight: 180 g
• Handmade in Germany
