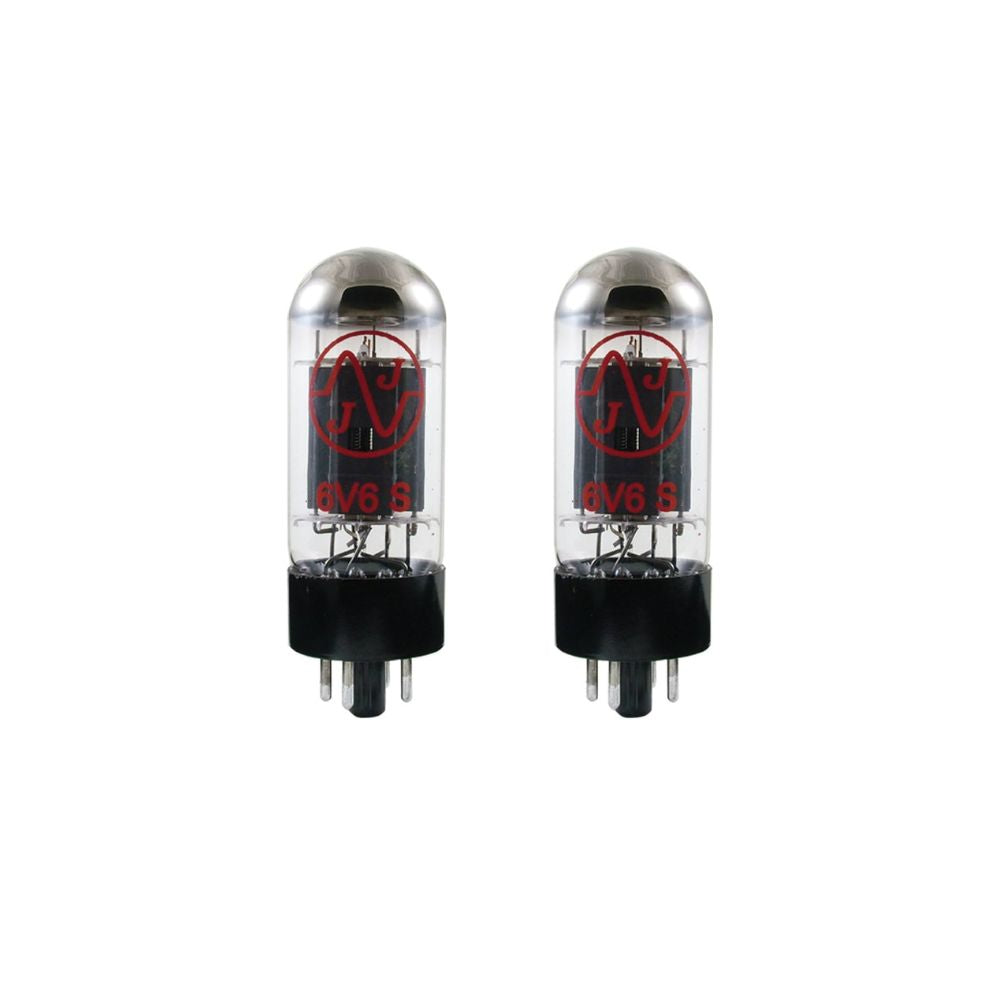

JJ Electronic 6V6S Matched Pair Vacuum Tubes

A. F. BEAM PENTODE

6V6 S is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end. Known to be a very powerful 6V6 due to its robust construction. In general, a very balanced tone. It can be used also in some 6L6 amplifiers.

Base: OCTAL
Uf = 6,3 V
If = ca 0,5 A

Typical characteristic:
Class A1
Singl tube / Push-Pull
Ua = 250 V / 250 V
Ug2 = 250 V / 250 V
Ug1 = -12,5 V / -15 V
Ia = 45 mA / 70 mA
Ig2 = 5 mA / 13 mA
Ra = 50 kΩ / -
Ra-a = - / 10 kΩ
N = 4,5 W / 10W
