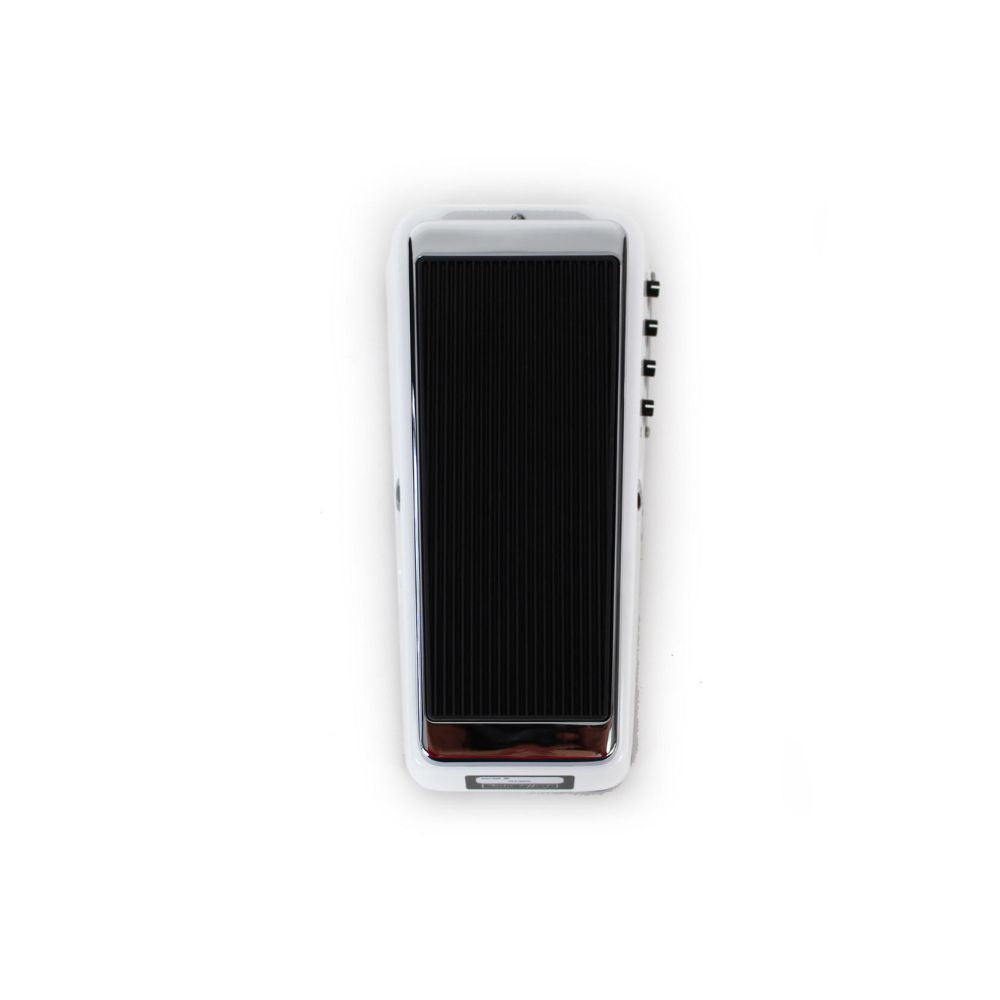

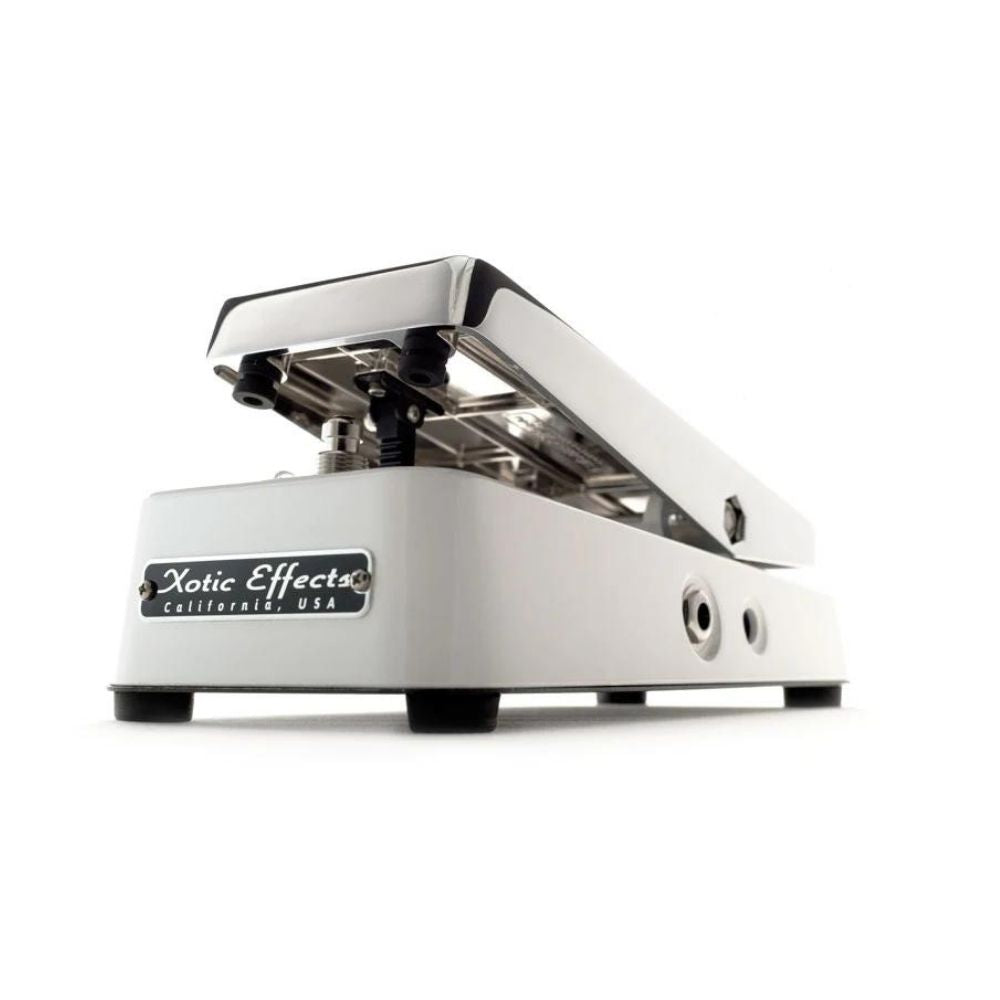

Xotic Effects XW-1 Wah pedal

Xotic Wah is modeled based on the Holy Grail wah, 1967-1968 Italian-built Clyde McCoy Wahs. With the Xotic Wah you don’t get one or three sounds in one pedal, you get unlimited sounds with unique controls that shape and contour your sound the way you hear it! The adjustability and flexibility of the Xotic Wahmakes this one of the most versatile wah pedals available today!

External Controls

 BIAS CONTROL — Changing the bias warmer will lead the Xotic Wah to having slightly more output & firm up bass frequencies along with a more pronounced wah through the sweep. A cold bias is common with vintage wah pedals for a very clear voice that is more transparent in tone and smoother in operation.

WAH Q CONTROL — This knob adjusts the Q (the width of the filter peak) and in basic terms, adjusts the amount of the wah effect for precise filter shaping to achieve vocal-like effects.

TREBLE & BASS CONTROL — A two-band EQ with +/-15 dB center-detent potentiometers optimize the voicing for different playing styles and gear.

ADJUSTABLE RUBBER STOPPER — Located on the backside bottom of the treadle this rubber bumper can be shimmed to adjust the travel range of the pedal.

ADJUSTABLE PEDAL TORSION — Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle.

LED INDICATOR — The LED indicator is located at the top of the Xotic Wah and lights up when the pedal is on. One unique feature of the Xotic Wah is the LED will flash if the battery power falls below 50% and indicates that it is time to change the battery.

DC JACK — 2.1mm x 5.5mm 9VDC — Negative Center. When an external power supply is used, the battery is disconnected from the circuit. When using a battery, the life of the battery can be extended if you unplug the input when the effect is not in use for long periods of time. Battery access is through the removal of bottom plate (4 screws).

Internal Controls

INPUT GAIN — Controls wah input gain– by turning clockwise it adds up to +6dB of Wah Boost.

RELAY BYPASS SWITCHING — Xotic Wah uses a relay bypass switching for true bypass switching.

INTERNAL DIP SWITCHES — Controls wah resonance frequency range.
