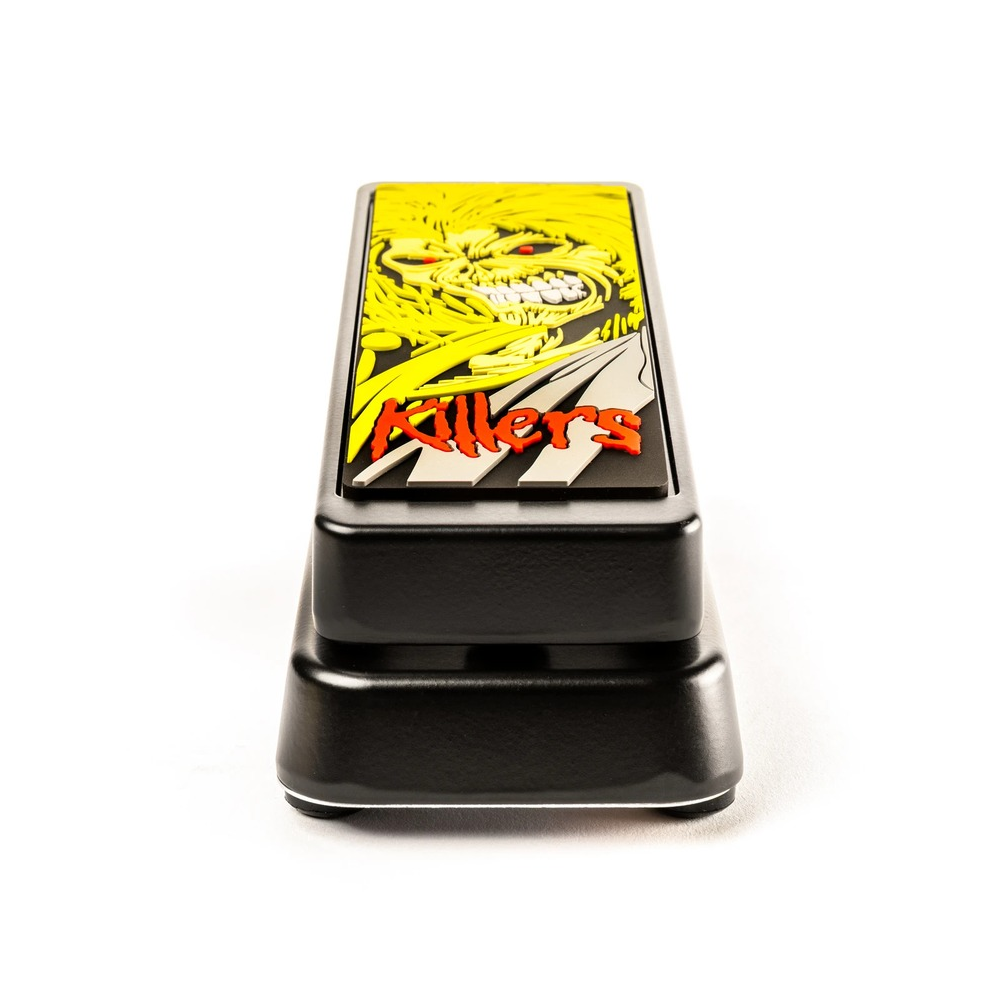

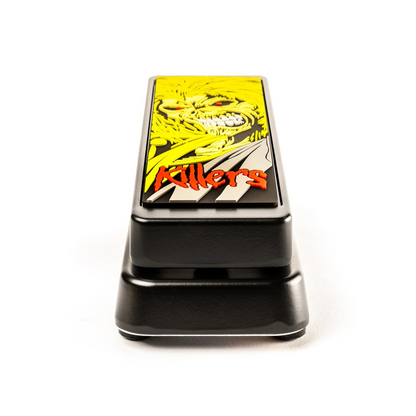

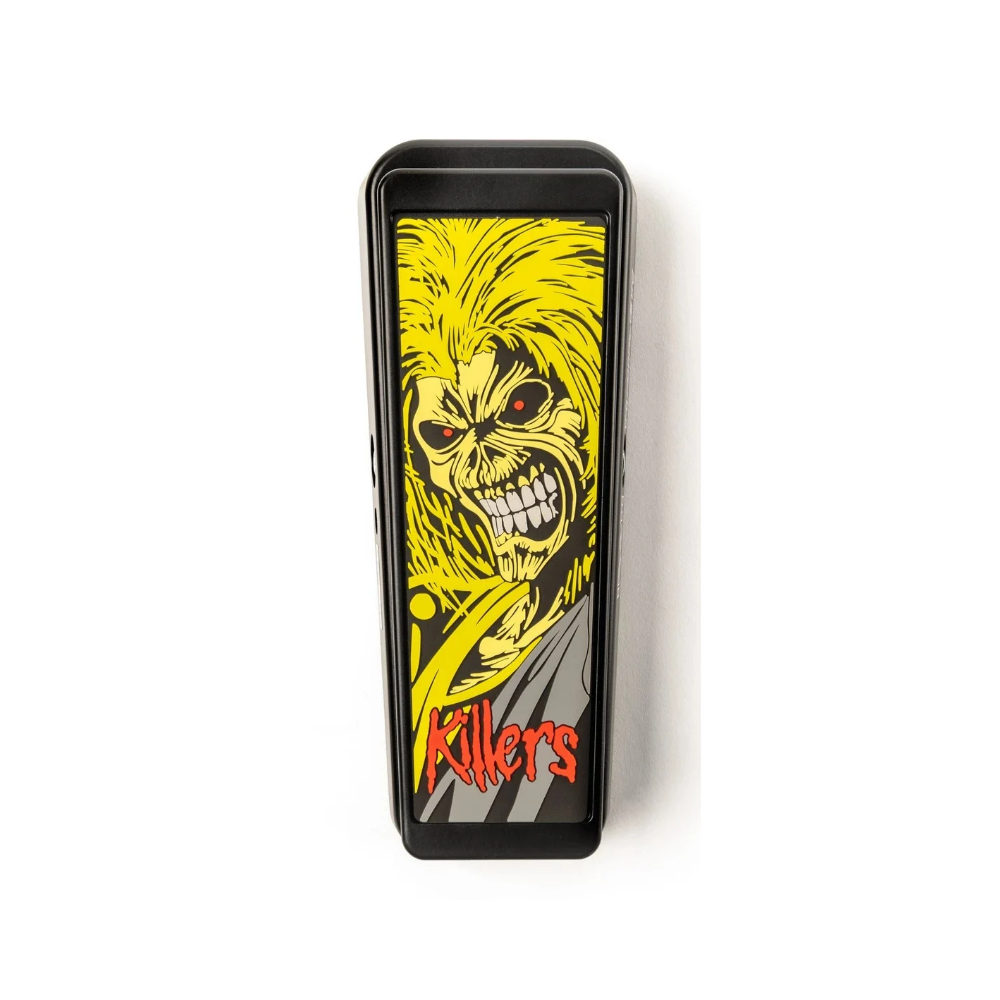

This collector’s edition Cry Baby Wah pays tribute to one of the most powerful and enduring forces in music history, Iron Maiden.

BASIC OPERATION

POWER

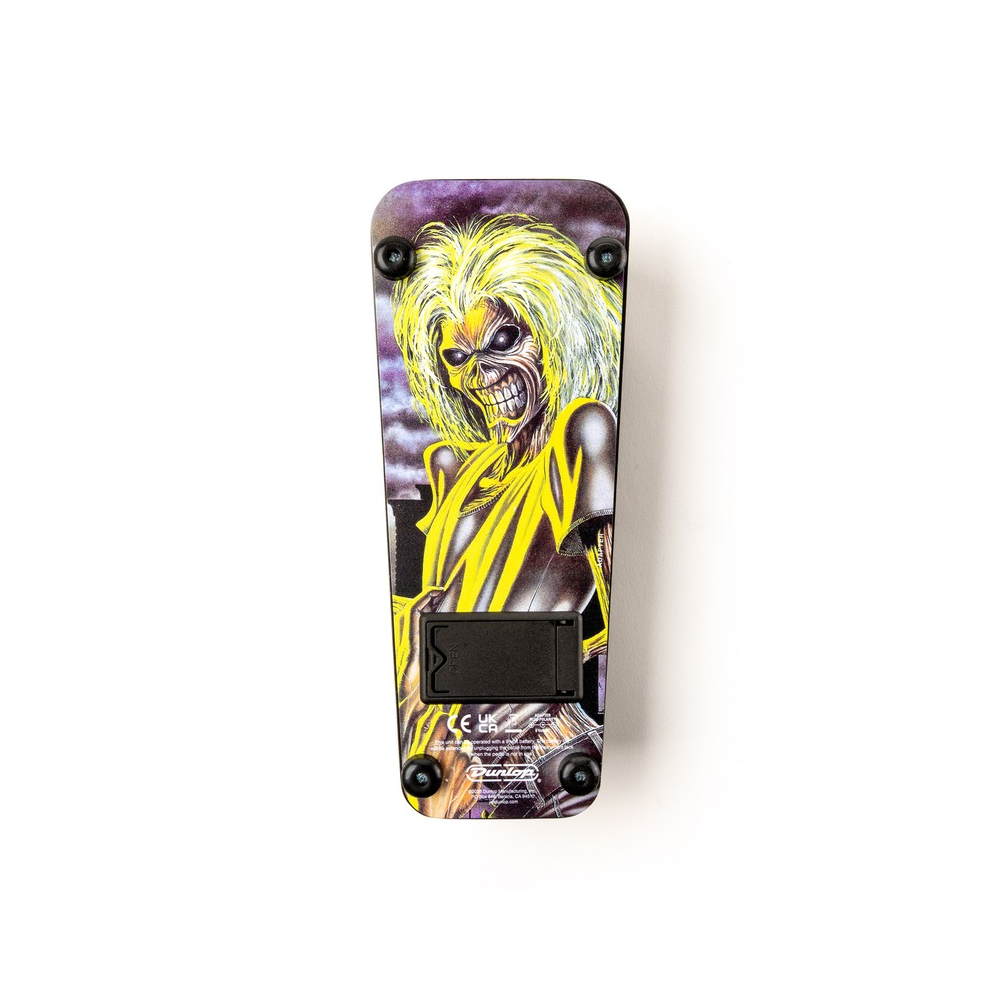

The Iron Maiden Killers Cry Baby ® Wah is powered
by one 9-volt battery (accessed via the bottom of the
pedal), the Dunlop ECB003 9-volt adapter, or or an
MXR® Brick™ Series power supply.

OPERATION

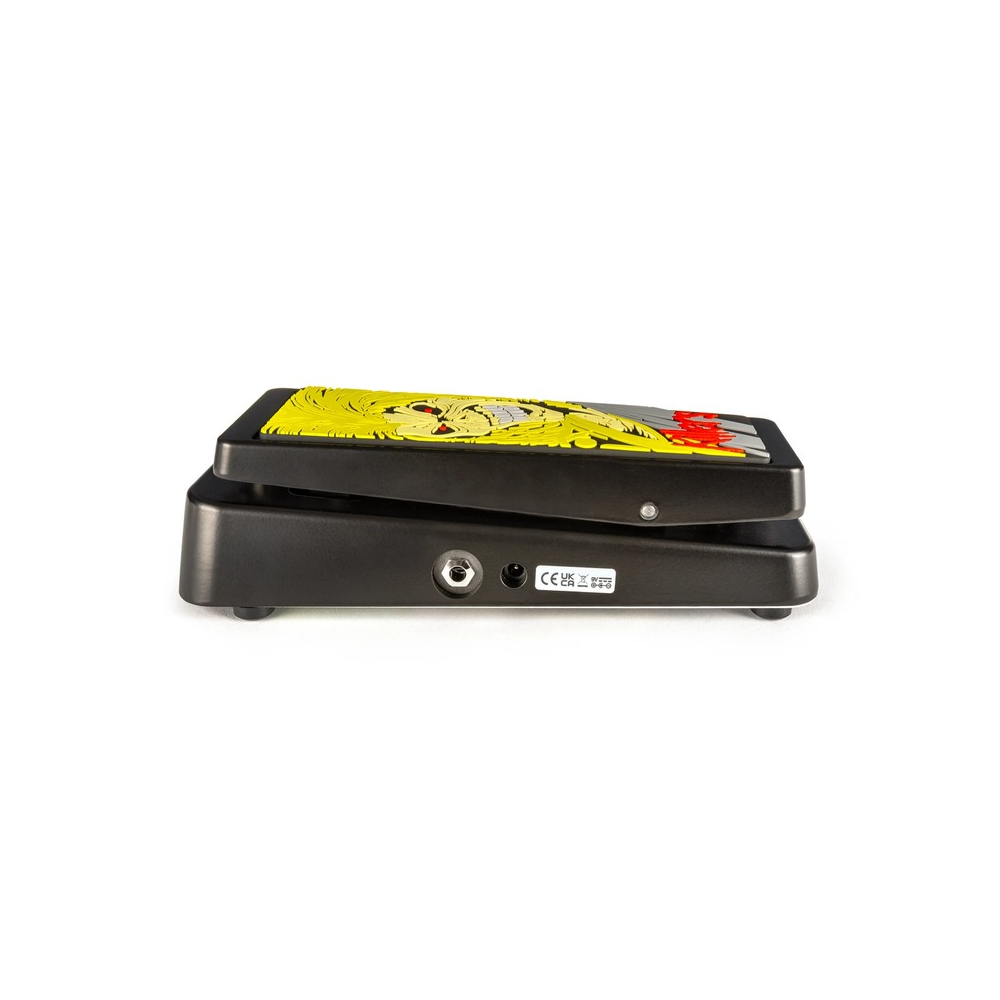

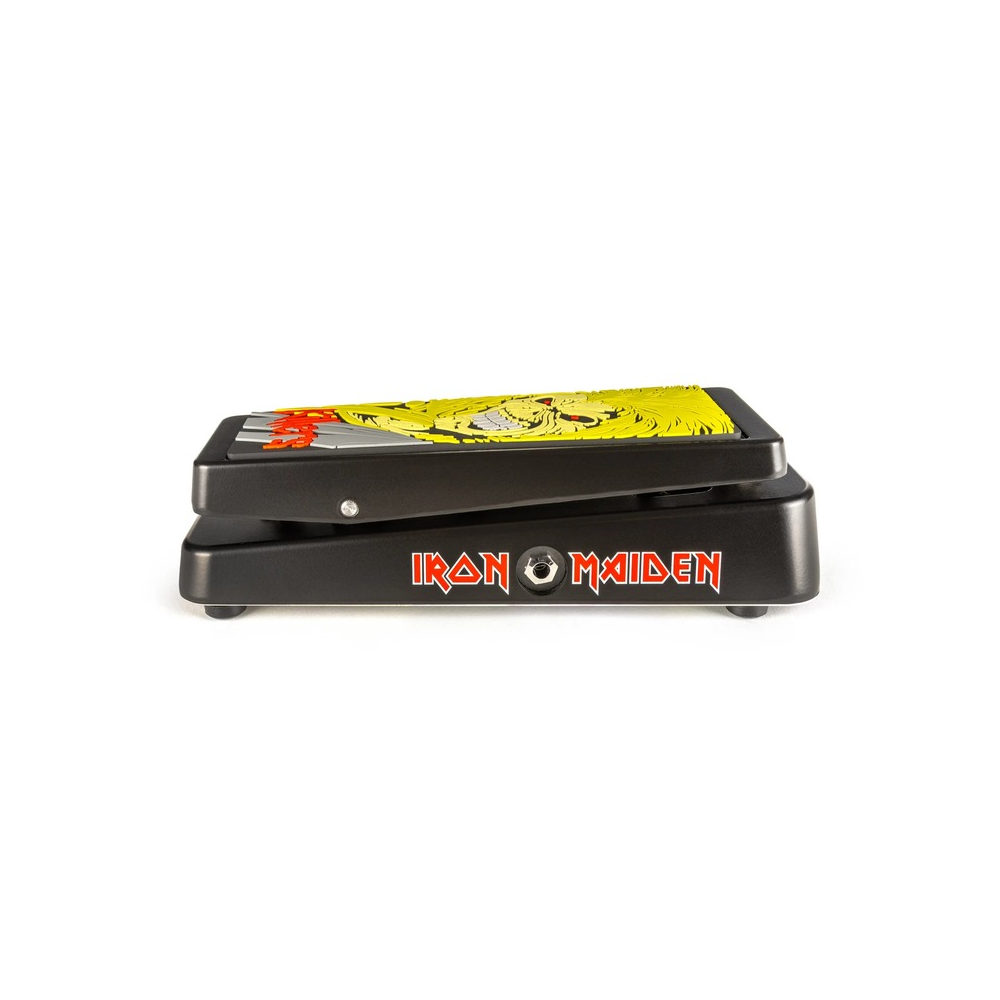

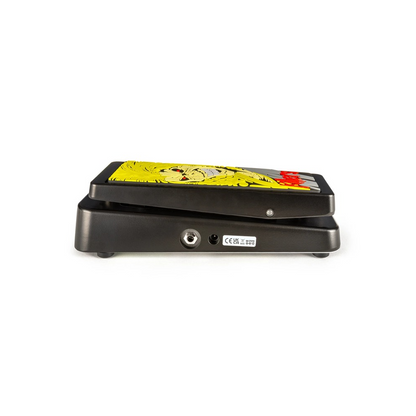

1. Run a cable from your guitar to the Iron Maiden
Killers Cry Baby Wah’s INSTRUMENT jack and run
another cable from the Iron Maiden Killers Cry Baby
Wah’s AMPLIFIER jack to your amplifier.
2. Turn on the amplifier and begin playing.
3. To turn the pedal on/off, push the top of the pedal
down until you hear a “Click”.
4. By rocking your foot back and forth on the pedal,
you can change the effect that the Cry Baby Wah has
on the tone of your instrument instantaneously.

SPECIFICATIONS

Input Impedance 800 kΩ
Output Impedance <10 kΩ
*A-weighted
IMPEDANCE
Heel Down -8.0 dBV
Toe Down +10 dBV
Heel Down +19.5 dB
Toe Down +19.0 dB
Heel Down 98 dBV
Toe Down 89 dBV
MAXIMUM LEVEL
MAXIMUM GAIN
SIGNAL TO NOISE RATIO*
Low Pass 350 Hz to 450 Hz
High Pass 1.5 kHz to 2.5 kHz
CENTER FREQUENCY
Current Draw 900 µA
Power Supply 9 volts DC
