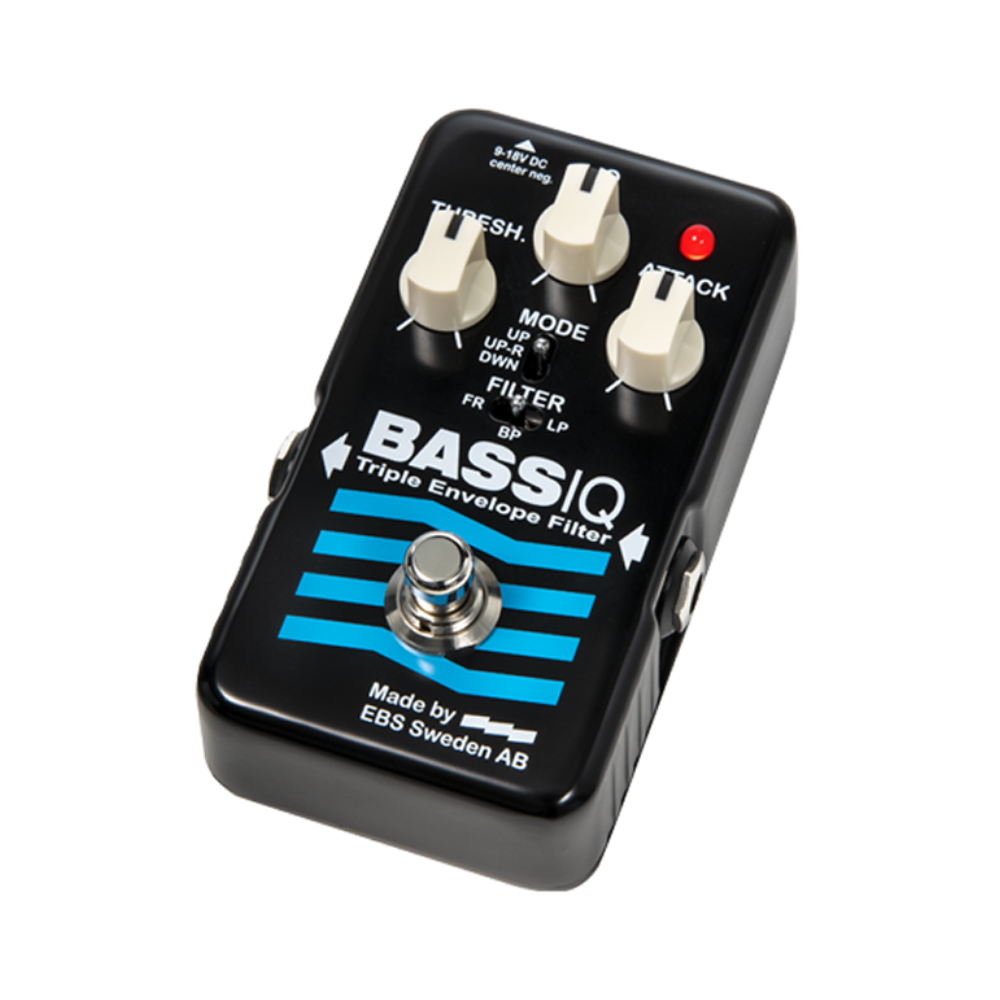

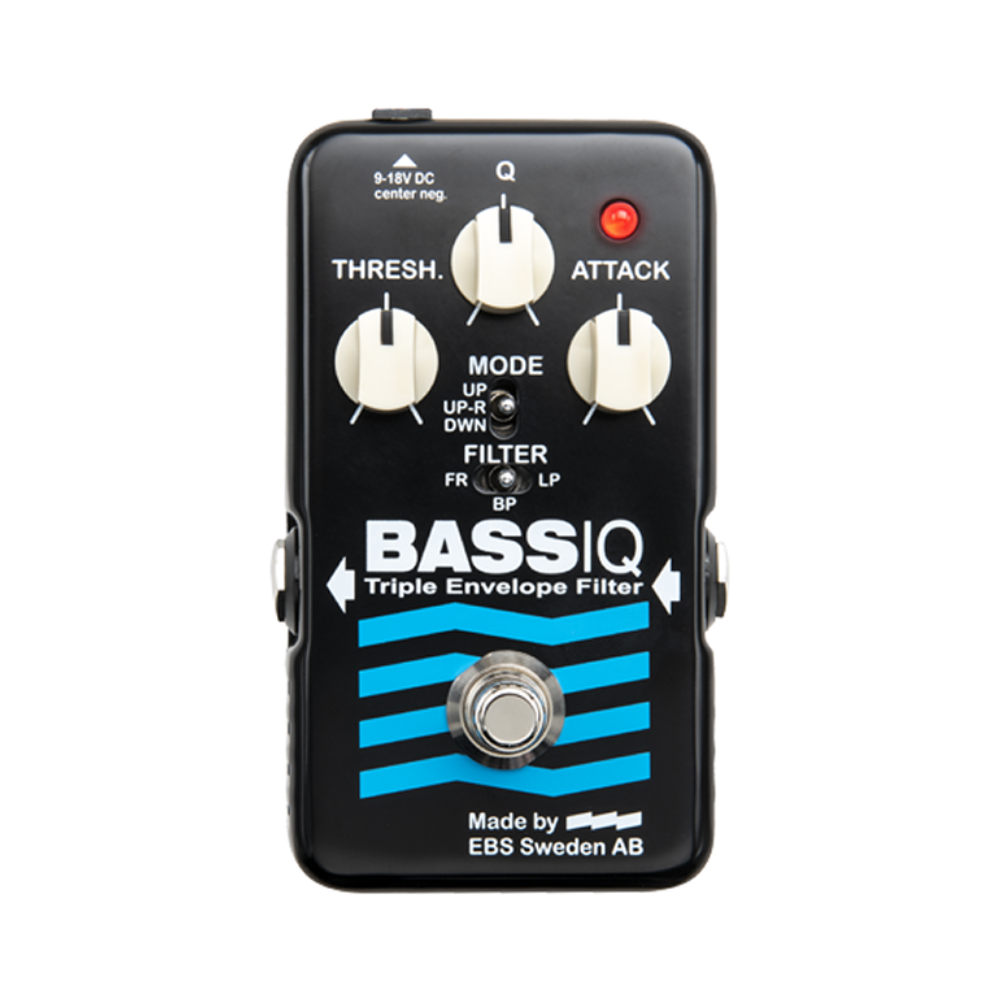

EBS BassIQ Blue Label Triple Envelope Filter Pedal

Regular price
Rs. 31,450.00
Regular price
Sale price
Rs. 31,450.00
Tax included. Shipping calculated at checkout.

Estimated Dispatch Time: 2-4 weeks

Email me when available
Add To Wishlist
Description

EBS BassIQ Blue Label.A responsive, analog envelope filter that’s as fun as it is musical—now more versatile than ever.

From classic auto-wah to gritty synth-bass growls, the BassIQ reacts dynamically to your playing for a truly expressive filter effect.

Shape Your Sound:

Q, Threshold & Attack controls let you dial in everything from smooth sweeps to punchy funk.

Mode Selector: Switch between Up, Down, and Up-R for different filter movement styles.

Filter Types: Choose Full Range, Band Pass, or Low Pass to reshape the tonal focus instantly.

Deep Control: Internal trim pots adjust gain, envelope range, and high-end mix for pro-level fine-tuning.

The Blue Label version include a more compact design, improved response, and enhanced tone control—ready to fit any pedalboard.

Features

Low Range

Preserve the low range

Usage

Suitable for live and studio use

Filter Type

Flexible envelope filter

Controls

Q, Threshold & Attack-controls

Modes

Up, UP-R and Down modes

Filter Options

Low Pass, Band Pass & Full Range filters

Fine Tuning

Internal controls for fine tuning

Bypass

True Bypass

Specs

Nominal Input Level

-10 dBv

Input Impedance

1.8 Mohms

Output Impedance

100 ohms

Dry Bandwidth

+0 / -2 dB, 20 – 20 kHz

Filter


Range: 100 – 2.5k Hz
Q: 0.7 – 15
Mode: Down / Up-Range / Up
Type: Low Pass, Band Pass, Full Range

Threshold

-50 to +6 dBv

Attack Time (80%)

50 ms – 2 s

Dimensions (W x H x D)

2.6″ x 4.5″ x 1.9″ (67 x 115 x 48 mm)

Weight

315 g (0.7 lb.)

Type

Analog Effect, Relay Switching

Power Requirements

9, 12, or 18 V DC, 55 mA max (shuts off below 6 V)
