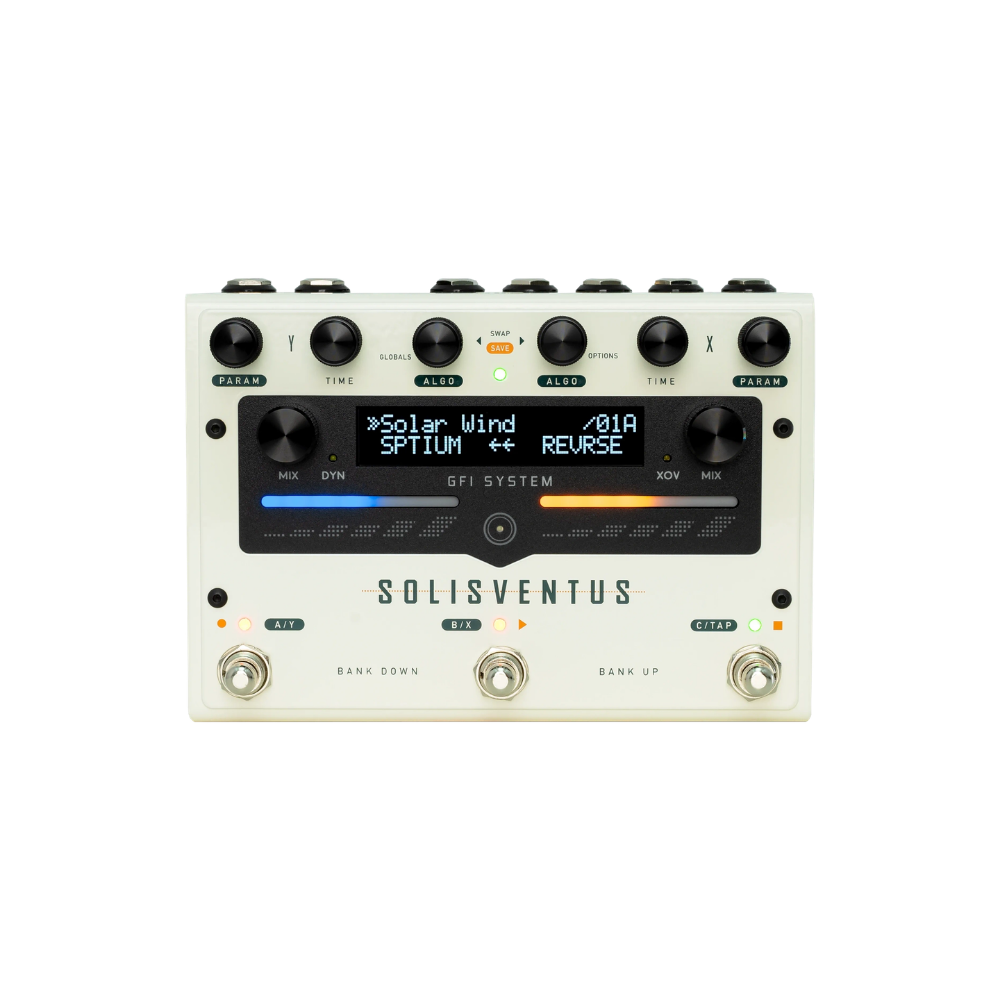

Solis Ventus
Solis Ventus is a dual‐engine Delay and Reverb pedal, able to run two algorithms at once, with arbitrary pairings, ordering, and routings. A special 'Stompbox Mode' dedicates one footswitch to control the on/off state of each engine, effectively turning the Solis Ventus into a quick and dirty two-stompbox setup. And as always, external control devices may be used to open up even more interactive possibilities.
Specification
- Input impedance: 1 MOhm.
- Output impedance: 500 Ohm.
- Volume trim: +/- 3dB.
- Max input level: +7.23 dBV = 9.45 dBu = 6.5 Vpp.
- SNR: 115 dB typical.
- AD/DA: 24-bit, 40 KHz.
- Bypass: Buffered or True Bypass (selectable).
- Output jacks : 1/4 inch TS.
- Input jacks: 1/4 inch TS.
- MIDI Input / MIDI Thru jacks: 1/4 inch TRS.
- USB connector : Type C
- Dimension : 17 x 12 cm (6.7 x 4.6 inch)
- Power requirement : 9V DC / < 350mA, negative-center plug (power supply is not included).
Key Features
- Dual engine Delays and Reverbs.
- Runs two algorithms simultaneously.
- Achieve any delay-delay, reverb-reverb, or delay-reverb pairing, in any order.
- Analog dry-through.
- 96 presets.
- True spillover and bypass trails.
- Flexible routing: Series, Parallel, and Dual Mono.
- Flexible usage: Preset Mode or Stompbox Mode.
- Stereo Looper (40 seconds).
- Instrument Level and Line Level.
- Aux switches control input.
- 2 expression pedal inputs (with CV compatibility).
- MIDI Input and MIDI Thru/Clock.
- High-contrast OLED display.
Detailed Features
16 Delays, 11 Reverbs, 96 Presets
In addition to several new exciting algorithms, the entire algorithms library from the Specular Tempus have been brought back, improved and expanded, for the Solis Ventus.
Flexible Routings
Stack your delay and reverb, combine them in parallel, or run them independently in dual mono channels, and then swap them around on the fly, Solis Ventus has all your wild ideas covered. Routing, ordering, and on/off state information are clearly displayed at all times so you will never get lost.
Stereo Looper
A 40 second stereo looper is available that works independently from the Delay and Reverb engines, either before (Pre) or after (Post). A perfect tool for creating a sound-on-sound style loops. The layering of sounds didn't stop there: the playback effects cover standard and experimental application, from speed manipulation, sound reversal, to an ever increasing pitch transposition.
Expansive External Control
- Expression - 2 expression pedal inputs (with CV compatibility). - Aux Switches - accepts up to 3 external switches for additional control (bank up/down, tap tempo, etc). - MIDI In / MIDI Thru/Clock - nearly all features and functionalities of the pedal are opened to MIDI access.
Dynamics Engine
Independent dynamics processing engines, placed post DSP X and DSP Y, enable dynamic effects (ducking or gating) to be applied to any delay or any reverb algorithms in the Solis Ventus. Both DSP X and and DSP Y have their own dynamics engine, bringing an unprecedented flexibility and precision in sculpting your dynamic delay and reverb soundscape.
Crossover Engine
A switchable crossover filter allows you to split the input signals into two frequency bands, one frequency band is routed to DSP X and the other band is routed to DSP Y. This band splitting allows the X and Y engines to run the algorithms on different frequency bands, a wonderfully effective tool for creating unique moods and textures. You can even modulate the cutoff frequency via MIDI for an otherwordly effects!
Complete Parameter Control
All parameters are fully accessible directly through the pedal. The SV Studio for Windows and macOS offers an easier way to manage presets, assign expression parameters, and adjust every minute detail of the Solis Ventus' settings.
