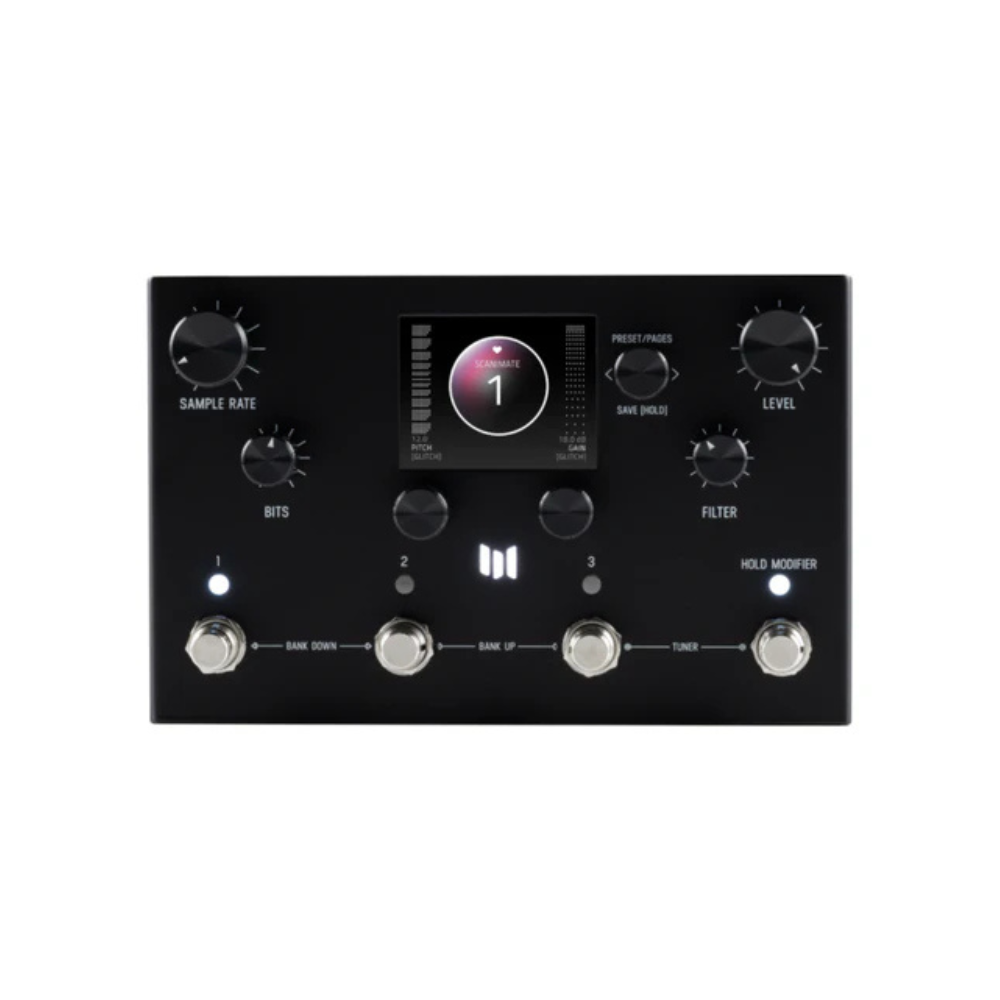

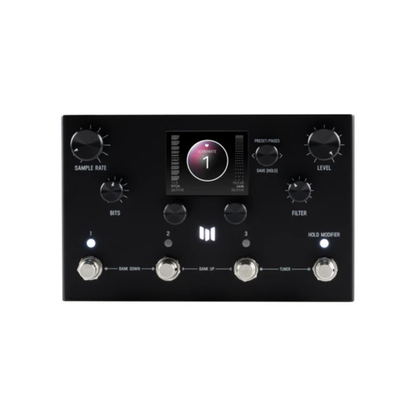

Meris Ottobit X Modular '80s Texture Engine Synth Effect Pedal

NEW – A modular degradation and texture engine packed with ’80s nostalgia, pro audio heritage, advanced processing and high performance signal paths. Upgrading our past vintage gaming inspired devices, Ottobit Jr. + Ottobit Sr., now expanded with Lo-Fi sounds all reminiscent of the ’80s.

Features

• Full Stereo Modular degradation and texture engine with vintage ’80s nostalgia
• Advanced Bit Crusher
• 6 Glitch Types: Grain Freeze, Stutter, 2 (1 button loopers): Push Loop and Wikki Wikki (vinyl scratching), Tape Stop and Stutter Step
• 3 Filter Types:  Ladder, State Variable and Otto Tron
• 2 Ambience Types: VHS Reverb and VHS Delay
• 5 Pitch Types: Poly Chroma, Otto Tune, Micro Tune, Mono Chroma, Lo-Fi
• 5 Modulation Types: Ring Mod, Div Trem, Tape Mod, Freq Shift, Otto Vibe
• 4 Preamp Types: Volume Pedal, Tube, Vinyl and Wavefold
• Intuitive, Award Winning Color Screen based User Interface adapted from LVX and MercuryX
• Expressive Hold Modifier Switch for on the fly control
• 99 Preset Locations in 33 Banks
• 18 Artist Presets
• Favorite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you route control signals to processing parameters
• Digitally controlled Analog mix bus

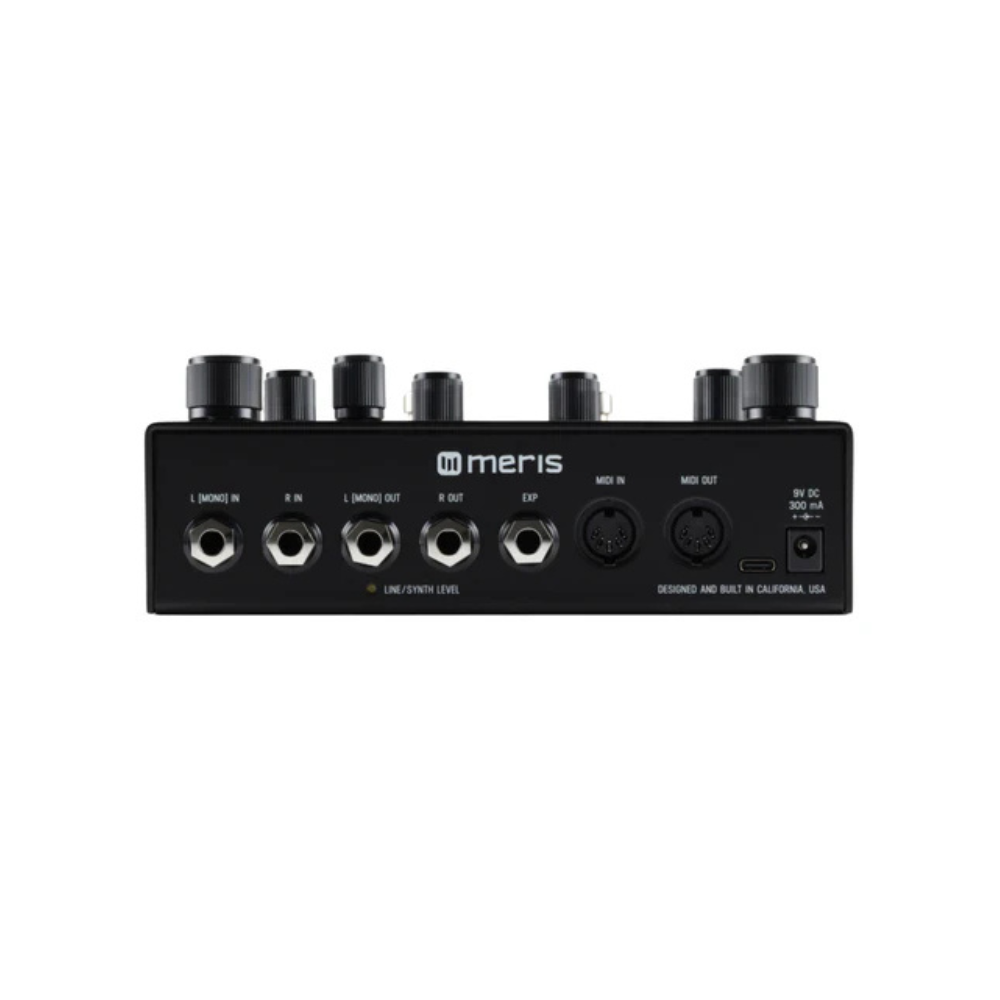

• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks or USB-C
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Advanced ARM Processor
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Color – Matte Black or Limited Edition Multidimensional Pink
• Designed and Built in California, U.S.A.

Specs

• Conversion 24 bit A/D and D/A
• DSP 32 bit floating point
• Sample Rate 48000 Hz
• Input Impedance 1 Meg Ohm
• SNR 115 dB Typical
• Frequency Response 20Hz-20kHz
• Max Input Level +9 dBu (instrument level setting)
  +12.5 dBu (line/synth level setting)
• Power 9V DC center-negative, 300mA, 2.1mm jack
• Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass
• Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)
• Weight 24 ounces
