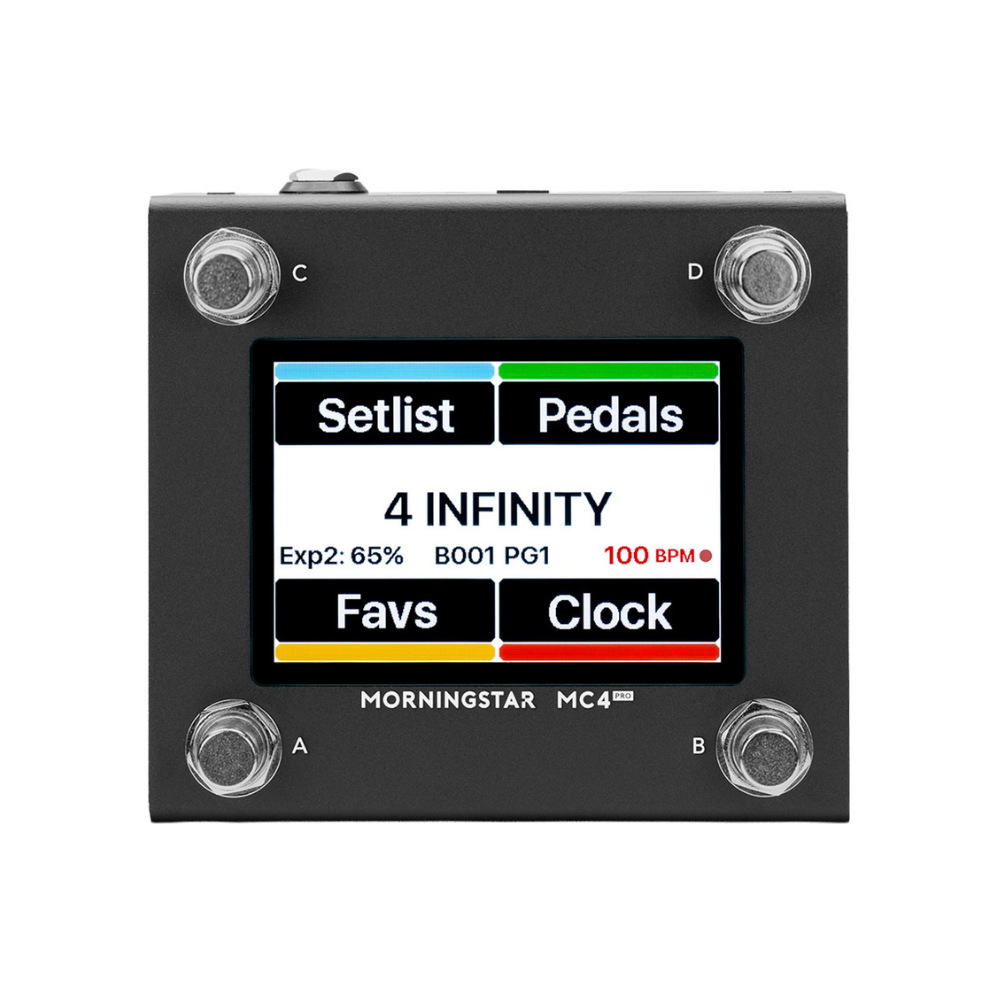

Featuring the largest single display across our controller lineup, MC4 PRO's high-res dynamic screen provides all the feedback you need to deliver memorable performances.

Designed for tight spaces. Built for big ideas.

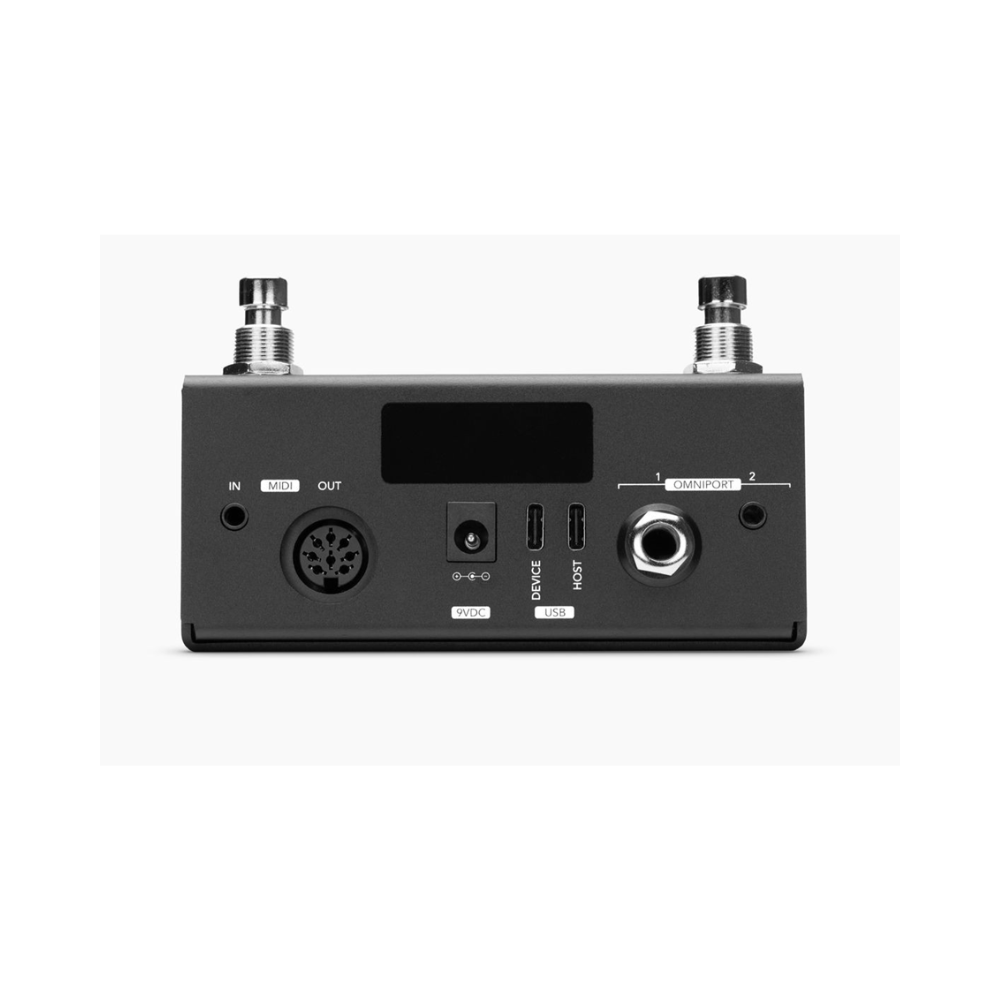

Re-engineered ports designed to fit its streamlined chassis make MC4 PRO a connectivity powerhouse.

MIDI In & Out

By substituting DIN5 with 3.5mm TRS (Type A), MC4 PRO is able to retain a MIDI input on its rear panel, while still featuring a DIN5 MIDI output.

2 Omniports

Choose TRS MIDI Output, Expression Pedal Input or Aux Switch Input. With our first 3.5mm Omniport, MC4 PRO is able to house two of them.

Relay Port

Control non-MIDI devices that support aux switch control — amp channel switching, analog delay tap tempo, and Strymon, Keeley and JHS control ports.

3.5mm MIDI In & Out

An extra pair of MIDI ports make it less likely that you'll need an additional MIDI box. Perfect for that one extra pedal without a MIDI Thru port.

Wireless connectivity.



MC4 PRO features low latency Bluetooth MIDI for direct, wireless communication with your computer or mobile device.



Connect to the Morningstar Editor, control your favorite DAWs and plugins, or pair with wireless MIDI adaptors.

Tech Specs

Enclosure Dimensions
115 w x 110 d x 52 h (mm)
4.5 w x 4.3 d x 2.0 (in)

Power Requirements
9-12V DC center negative
Minimum 350mA (70% screen brightness)
Minimum 500mA if using Relay Ports
USB Bus Power
Phantom Power via MIDI Out pins 6 & 7

Hardware
Blasted aluminium enclosure
Hi-res color LCD
4 Soft touch foot switches

Memory
No. of banks: 128
Pages per Bank: 4
Presets per Page: 4
Total number of Presets: 2,048



I/O
1x 5-pin MIDI Out
1x 3.5mm MIDI In
1x USB Type C (Device)
1x USB Type C (Host)
2x Omniport
1x Relay Switching Port
1x 3.5mm TRS MIDI Out
1x 3.5mm TRS MIDI In
