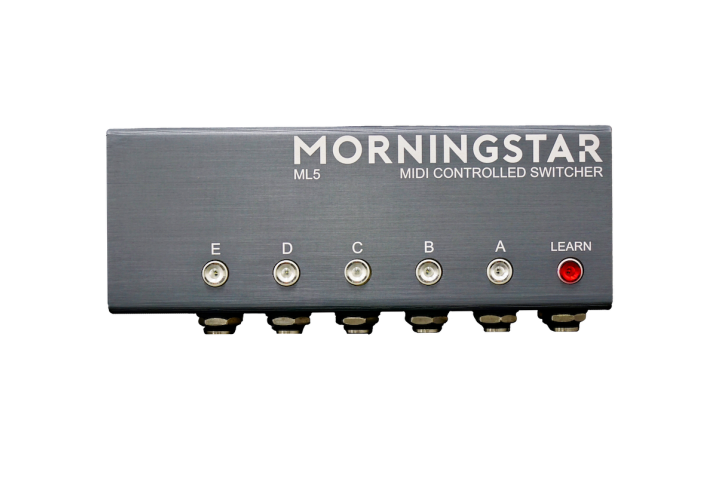

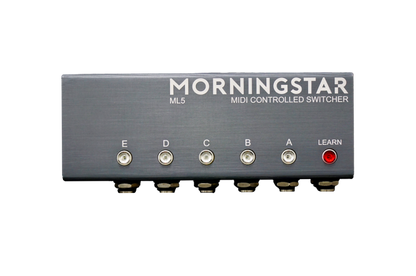

Morningstar ML5 Loop Switcher
- Regular price
-
Rs. 26,950.00 - Regular price
-
- Sale price
-
Rs. 26,950.00
Estimated Dispatch Time: 2-4 weeks
Couldn't load pickup availability
Description
The ML5 lets you to use your MIDI controller to control your non-MIDI pedals, giving you simultaneous control of both your digital and analog effects.
Easily select which of your non-MIDI pedals are included or excluded from each of your MIDI presets and recall loop combinations with the touch of a switch.
100% ANALOG
ML5 maintains a fully analog signal through the entire audio path.
TRUE BYPASS
True bypass relays ensure that your tone stays true.
EASY PROGRAMMING
Learn mode lets you quickly and easily set which loops are engaged/bypassed in each of your presets, and recall the combination with a Program Change (PC) message.
Each loop can also be independently toggled on/off with a Control Change (CC) message.
Watch the ML5 in action below.
SILENT SWITCHING
Muted switching mutes then smoothly increases the volume of selected loops during switching. This allows for noise-free switching even when engaging/bypassing higher gain, noisier pedals.
You can also customize the duration for which the loops are muted.
COMPACT DESIGN
Every inch of space in the ML5 is fully utilised to keep it small and sleek, so that it takes up as little space as possible in your rig.
If you are interested in a loop switcher that allows you to reorder your loops, have a look at the ML5R or ML10X.
TECHNICAL SPECIFICATIONS
Dimensions:
165 x 60 x 54 mm
Power Requirements:
9-12V DC center negative (min 200mA)
Hardware:
Anodized aluminium enclosure
5 x Loop Status LED
1 x Learn Mode Status LED

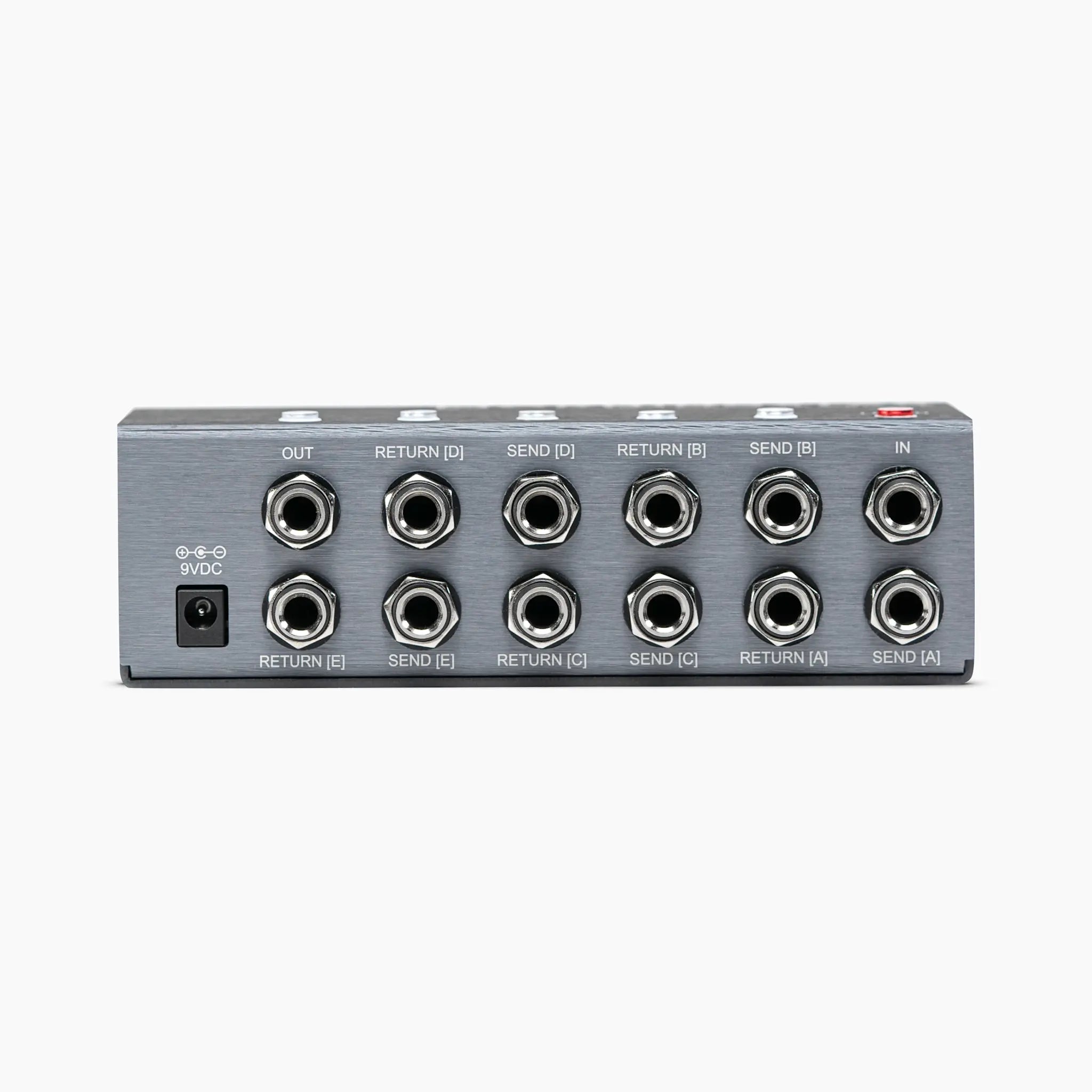

I/Os:
1 x 5-pin MIDI In
1 x 5-pin MIDI Thru
1 x Audio Input
5 x Loop Send
5 x Loop Return
1 x Audio Output
