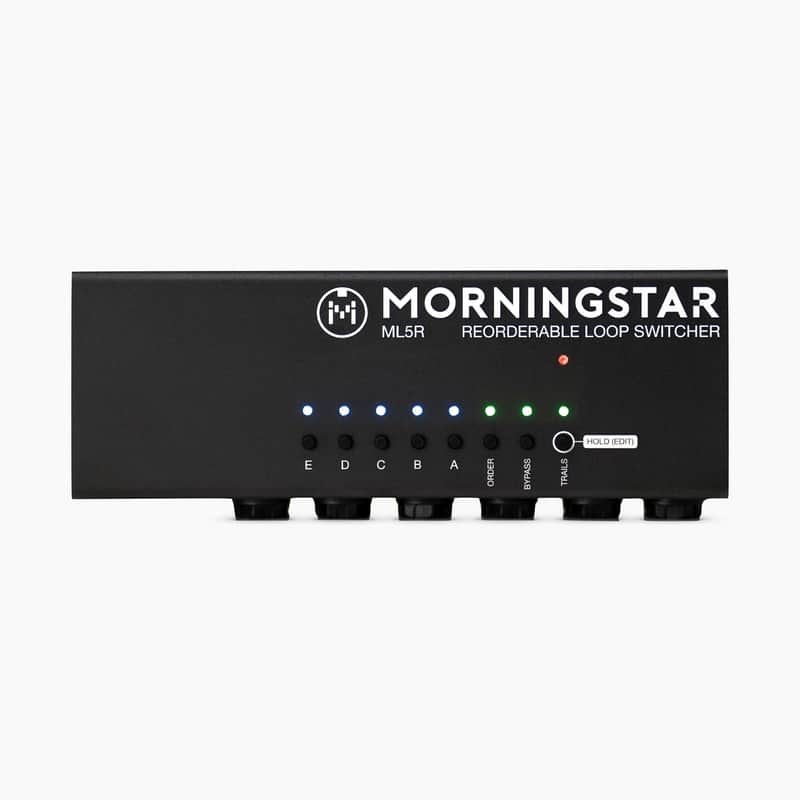

Morningstar ML5R Mono Reorderable Loop Switcher
- Regular price
-
Rs. 33,450.00 - Regular price
-
- Sale price
-
Rs. 33,450.00
Estimated Dispatch Time: 2-4 weeks
Couldn't load pickup availability
Description
ML5R is a reorderable loop switcher that redefines your approach to audio effects. Experience entirely new sounds from your existing effects - just by switching up their order.
Its sleek, intuitive interface enables you to switch the order of your effects quickly, whenever you want.
Fully Analog.
ML5R maintains an analog audio signal path throughout the entire device.
No editor required.
Everything you can do on ML5R, you can do on ML5R.
Set loop Order, Bypass and Trails with just a few simple switch presses.
Set Order.

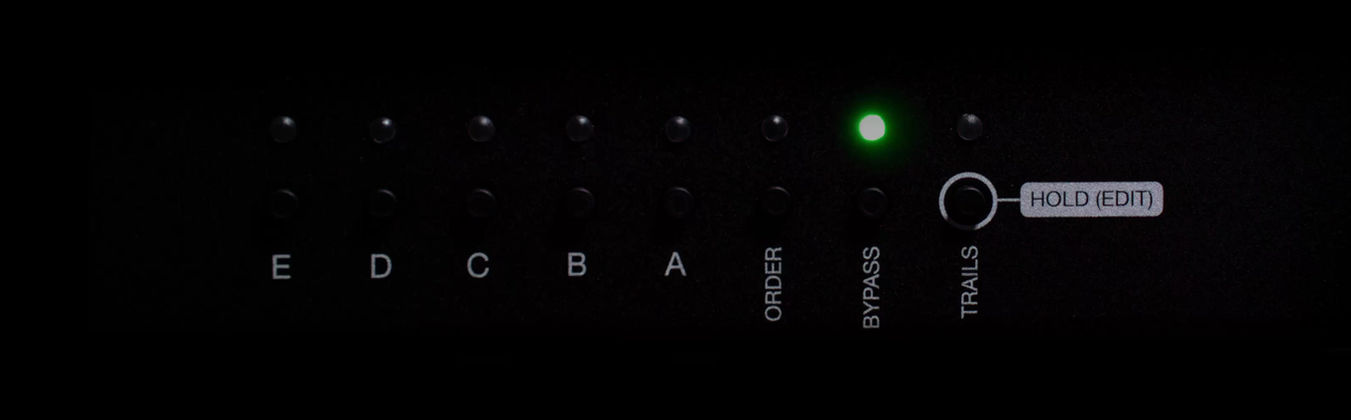

Simply press the loop buttons in your desired order, and audio loops will be arranged accordingly. In the example below, the order is B > A > D > C > E.
Set Bypass.
Select the loops that you want engaged when you recall an ML5R preset. In the example below, loops A, C and E are engaged while the rest are bypassed.
Loops can also be engaged or bypassed individually after a preset has been recalled.
Set Trails.
Enable spillover trails for your desired loop
(only one loop per preset).
Save.
Save your custom loop Order, Bypass and Trails settings as a preset in any of the 128 user slots.
Simply send ML5R a Program Change message from 0 to 127 to instantly recall your desired preset.
5 mono loops in series.
Full MIDI Capabilities.
Scroll through presets, toggle individual loops on/off, rearrange loop order, control master mute and more. Take full control of ML5R with your MIDI controller.
If you use a Morningstar MIDI controller, a dedicated ML5R message type allows quick and easy access to all functions without needing to refer to any MIDI chart.
Compare loop switchers
TECH SPECS
Dimensions
169 x 58 x 58 mm
400g
Memory
No. of presets: 128
I/O Ports (buffered)
1x Audio In
1x Audio Out
5x Sends (mono)
5x Returns (mono)
1x 5-pin MIDI In
1x 5-pin MIDI Thru
Impedance
Input/Returns: 1M ohm
Output/Sends: Approx 100 ohm
Power Requirements
9-18V DC center negative
Minimum 160mA
Max I/O level
5V peak to peak (with 9v power supply)
13V peak to peak (with 18v power supply)
